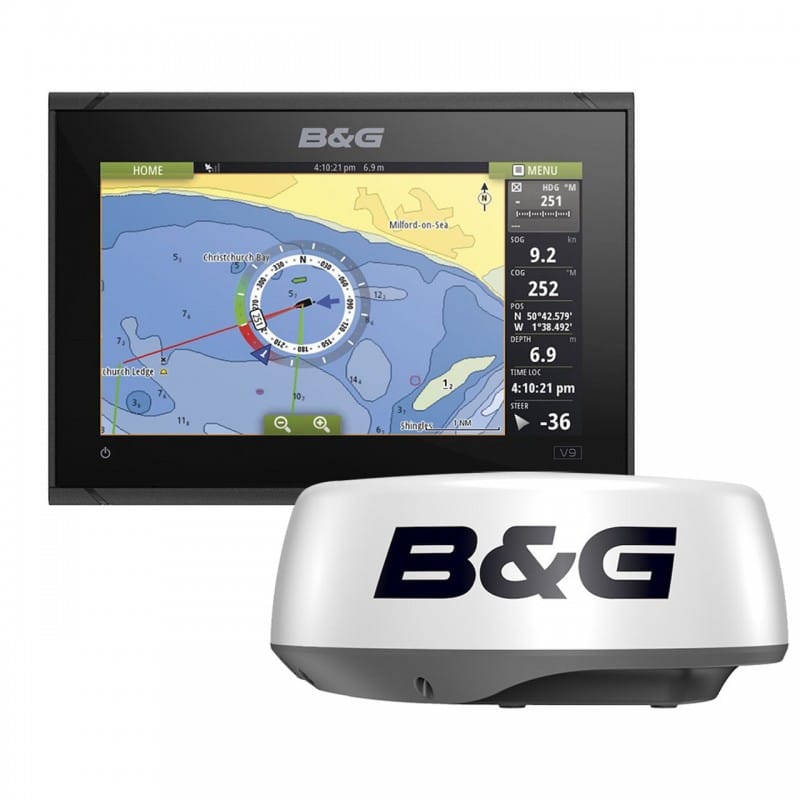

B&G – Vulcan 9 Radar Bundle – With HALO20 Radar
Roll over image to zoom in
$1,760.00
The B&G Vulcan 9 Radar Bundle combines a powerful 9-inch multi-touch sailing chartplotter with the HALO20 radar, delivering precise navigation, target tracking, and weather awareness for sailors and cruising vessels.
Condition: New
The B&G Vulcan 9 Radar Bundle offers an all-in-one sailing navigation solution that integrates advanced chartplotting, radar, and sailing features in one easy-to-use package.
The Vulcan 9 features a 9-inch bright multi-touch display, intuitive controls, and compatibility with a wide range of B&G sailing instruments. Paired with the HALO20 radar, this system enhances situational awareness by detecting targets, coastlines, and obstacles with exceptional clarity — even in fog, rain, or darkness.
Perfect for coastal cruisers and club racers, the Vulcan 9 bundle supports autopilot integration, sailing laylines, and route planning with real-time wind and speed data, ensuring safe and efficient navigation in all conditions.
Key Features
-
Complete navigation package: chartplotter + radar
-
9″ multi-touch display with intuitive interface
-
HALO20 pulse compression radar for clear short & mid-range detection
-
Easy integration with B&G autopilot, instruments, and sensors
-
Preloaded C-MAP charts with expansion options
-
Built-in Wi-Fi and NMEA2000 networking
-
Advanced sailing features: laylines, wind data, and race panel
-
Low power consumption and waterproof design
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | B&G |
| Model | Vulcan 9 Radar Bundle with HALO20 |
| MPN | 000-15612-001 |
| Condition | New |
| Display Size | 9-inch |
| Display Type | Multi-touch color LCD |
| Display Resolution | 800 × 480 pixels |
| Radar Type | HALO20 Pulse Compression Dome Radar |
| Radar Power Output (Peak) | 20 W |
| Radar Range | 0.25 to 24 nm |
| Antenna Rotation Speed | 24 RPM |
| GPS Receiver | 10 Hz high-sensitivity internal GPS |
| Networking | NMEA2000, Ethernet, Wi-Fi, Bluetooth |
| Power Supply | 12 V DC |
| Power Consumption | < 30 W (typical) |
| Waterproof Rating | IPX7 |
| Dimensions (Display) | 235 × 164 × 83 mm |
| Weight (Display) | 1.6 kg |
| Operating Temperature | -15°C to +55°C |
| Mounting Options | Bracket or flush mount |
| Country of Origin | Mexico |
Package Includes
-
B&G Vulcan 9 Chartplotter
-
B&G HALO20 Radar Dome
-
Power Cable & Mounting Brackets
-
Ethernet Cable
-
User & Installation Manual
Compatibility
Compatible with: B&G Triton², NAC Autopilot Systems, Zeus Chartplotters, NMEA2000 networks
Optional Accessories: C-MAP or Navionics charts, radar extension cable, GoFree Wi-Fi modules, transducers
