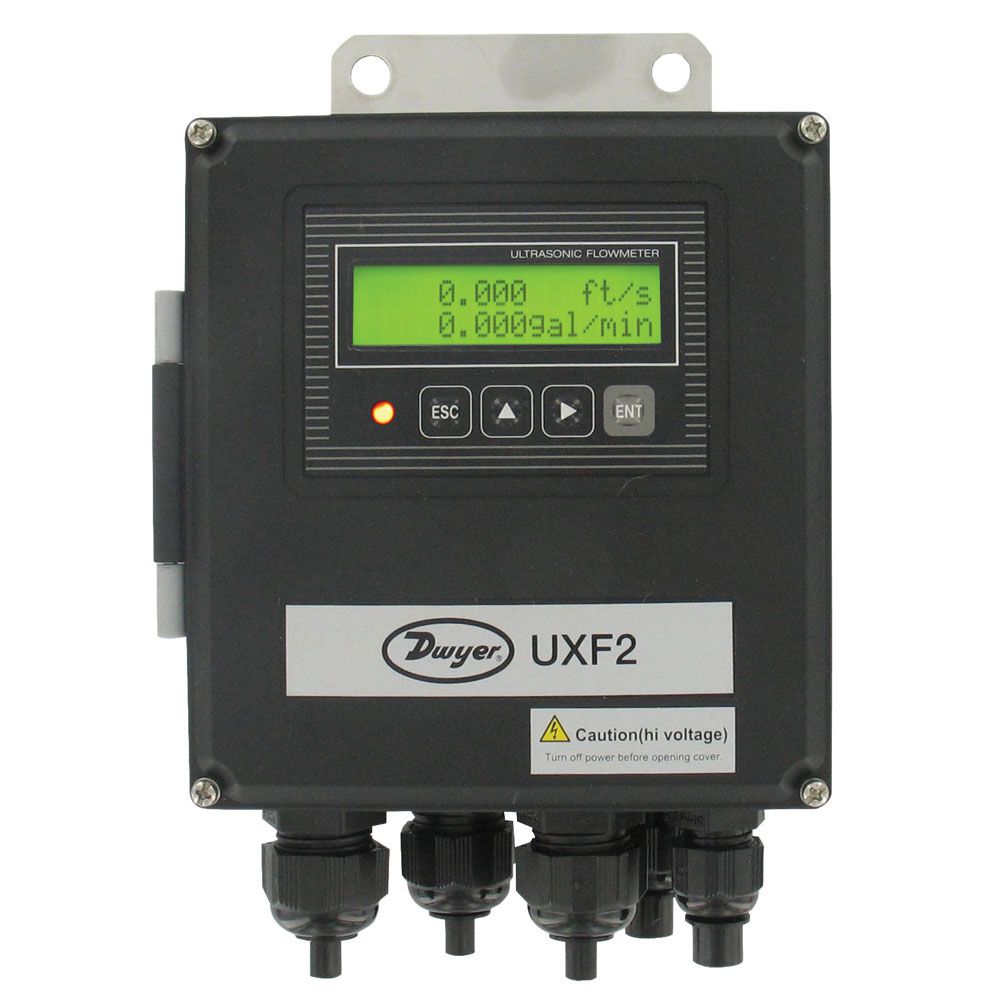

Dwyer Instruments UXF2-24P1

Series UXF2 Ultrasonic Flow Converters are paired with Series SX3 detectors in order to utilize the transit-time measuring method. Two ultrasonic sensors are mounted on the pipe exterior, and each transmits an ultrasonic pulse to the opposite sensor. The difference in the transit times of the two waves is used to calculate the flow velocity. This meter is a clamp-on type ultrasonic flowmeter for permanent use and is ideal for clean liquids containing no air bubbles such as pure water. The easy-to-use compact and lightweight design is intended for integration into mechanical devices. The adoption of a sound velocity measurement system, which calculates sound velocity from the transit time, keeps the flowmeter unaffected by the temperature and the pressure of the fluid to be measured. Additionally, with the use of a high-speed transit time processor, the system cycle is 0.2 seconds and applicable to short batch processes.

• Compact and lightweight
• Easy operation by external keypads
• Plastic housing with IP65 rating
• Communication and Synchronization options available
• 200 to 240 VAC
• Synchronization
