Eagle Compressor Air Compressor 5 HP 8 Gallon Wheelbarrow Electric

Eagle Compressor Air Compressor 5 HP 8 Gallon Wheelbarrow Electric

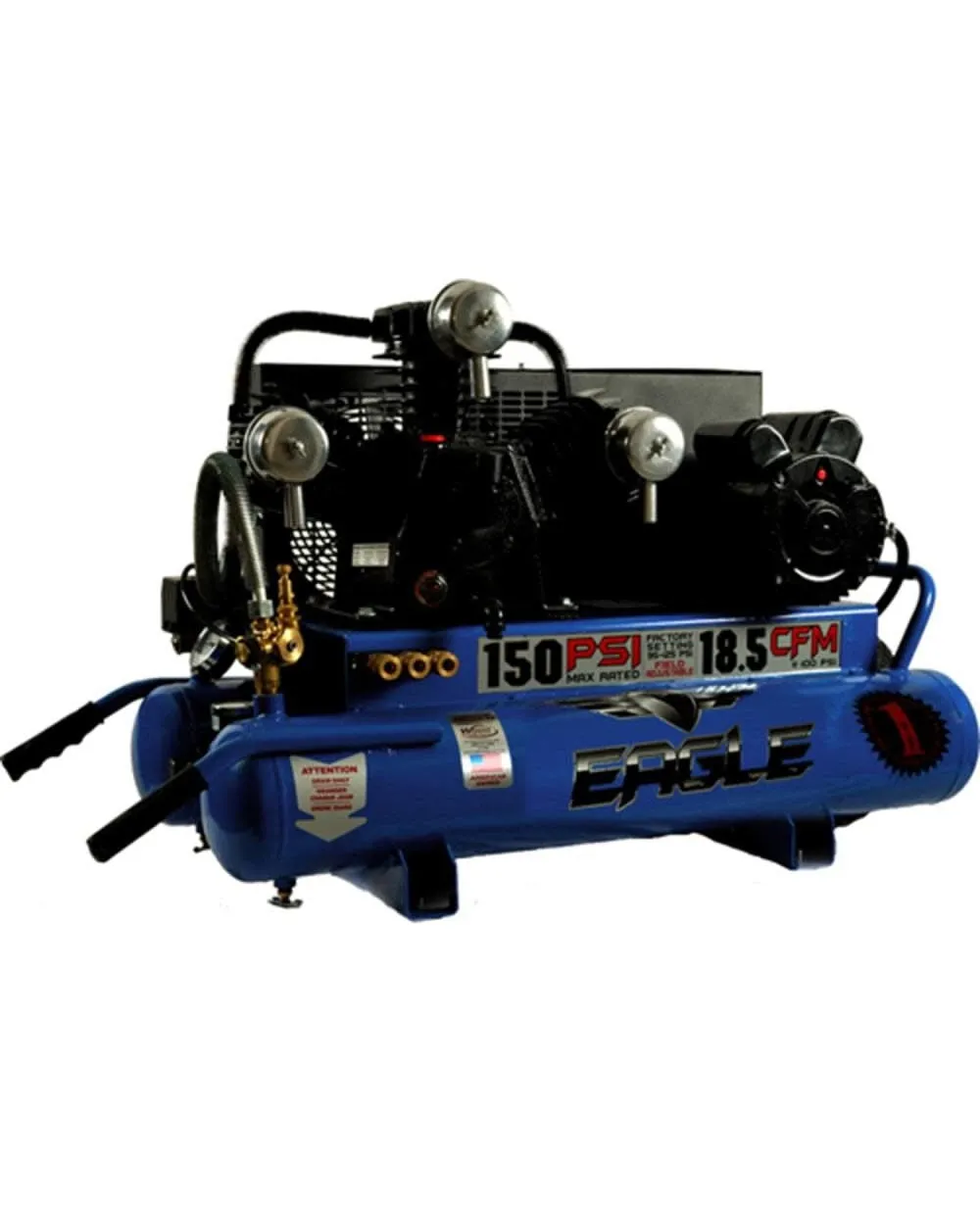

Eagle TT518E 8 Gallon horizontal capacity twin tanks. Thermally protected 5 HP single phase 208/230-volt electric motor. Cast iron cylinders with V design. Oil lube compressor delivers 18.5 CFM at 100 PSI. 150 max PSI. Easy view oil sight gauge. Metal air filers with “auto drop” feature. Outlet control regulator with quick connectors. Efficient heat removal from pulley-fan for cooler running and longer life. Sturdy metal belt guard.

FEATURES

• 8 gallon capacity twin tanks
• 5 HP single phase 208/230 volt electric motors
• Cast iron cylinders with “V” design minimizes vibration
• 150 PSI maximum rated
• Convenient oil drain on front of unit
• Steel rim pneumatic tire for easy handling and maneuverability
• Easy view oil sight gauge
• High efficiency reed valves for maximum performance

SPECIFICATIONS

Brand Name

Eagle Compressor

Amperage (A)

0

Assembled Weight (lbs)

236

California Proposition 65 Warning Required

Yes

Color

Blue

Compressor Design

Wheelbarrow/Wheeled

Country of Origin

United States

CSA Certified

No

ETL Listed

No

Height (in)

27

Horsepower (hp)

5

MFG Part # (OEM)

TT518E

Maximum Pressure Rating (psi)

150

Operating Position

Horizontal

Package Contents

Air Compressor 5 HP 8 Gallon Wheelbarrow Electric

Package Depth

48

Package Height

34.5

Package Weight

236

Product Condition

New

Tank Capacity (gal)

8

Tank Configuration

Twin Side by Side

Tank Material

metal

Tank Pressure Gauge

Yes

UL Listed

No

Voltage

208/230

Warranty Type

1 Year

Weight (lbs)

190

Wheeled

Yes
