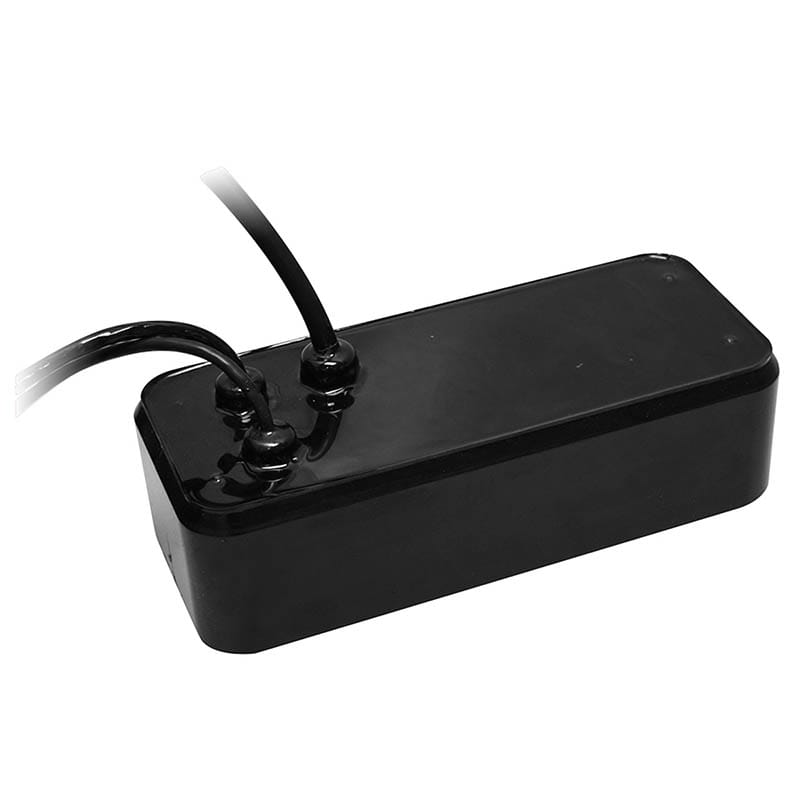

Furuno – 165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer
Roll over image to zoom in
$2,200.00
The Furuno 165T/265LH-PM488 is a combo pocket mount transducer that integrates DFF3D multibeam sonar with CHIRP broadband technology, providing superior underwater imaging and fish detection performance. Designed for use with Furuno DFF3D and NavNet TZtouch3 systems, it enables simultaneous 3D sonar and CHIRP sounder functionality.
Condition: New
The Furuno 165T/265LH-PM488 DFF3D CHIRP Combo Pocket Mount Transducer combines two advanced sonar technologies in one robust unit: the 165T multibeam sonar element for 3D bottom and fish structure imaging, and the 265LH CHIRP transducer for deep, high-resolution sounder performance.
The CHIRP broadband capability delivers precise fish and bottom detail across both low (42–65 kHz) and high (130–210 kHz) frequency ranges, while the DFF3D multibeam system provides a wide 120° port-to-starboard 3D coverage for real-time bottom scanning and fish tracking.
Its pocket mount urethane housing offers smooth hydrodynamic flow and easy installation for commercial and professional fishing vessels. Rugged and reliable, it ensures exceptional sonar clarity even in deep or rough water conditions.
Key Features
-
Combines DFF3D Multibeam Sonar and CHIRP Broadband Sounder in one transducer
-
Dual-frequency CHIRP operation: Low (42–65 kHz) / High (130–210 kHz)
-
Provides 3D imaging and high-resolution CHIRP detection simultaneously
-
Pocket mount urethane housing reduces drag and turbulence
-
Ideal for commercial and sport fishing vessels
-
Compatible with Furuno DFF3D and NavNet TZtouch3 systems
-
Built-in temperature sensor for precise environmental data
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | 165T/265LH-PM488 |
| MPN | 165T/265LH-PM488 |
| Condition | New |
| Transducer Type | Pocket Mount Combo (3D + CHIRP) |
| DFF3D Frequency | 165 kHz |
| CHIRP Frequency Range (Low) | 42–65 kHz |
| CHIRP Frequency Range (High) | 130–210 kHz |
| Power Output (CHIRP) | 1 kW |
| Beam Coverage (DFF3D) | 120° port-starboard |
| Material | Urethane |
| Mounting Style | Pocket Mount |
| Temperature Sensor | Included |
| Depth Capability | Up to 1,000 m (CHIRP) |
| Connector Type | 12-Pin |
| Cable Length | 10 m (33 ft) |
| Compatibility | Furuno DFF3D, NavNet TZtouch3 |
| Dimensions (Approx.) | 260 × 130 × 100 mm |
| Weight | Approx. 6.0 kg (13.2 lbs) |
Package Includes
-
165T/265LH-PM488 Pocket Mount Combo Transducer
-
Mounting Hardware
-
Sealing Components
-
Installation Manual
Compatibility
Compatible with: Furuno DFF3D Sonar Module, NavNet TZtouch3 MFDs
Optional Accessories: Cable Extensions, TZtouch3 Sounder Modules, Fairing Block Kits
