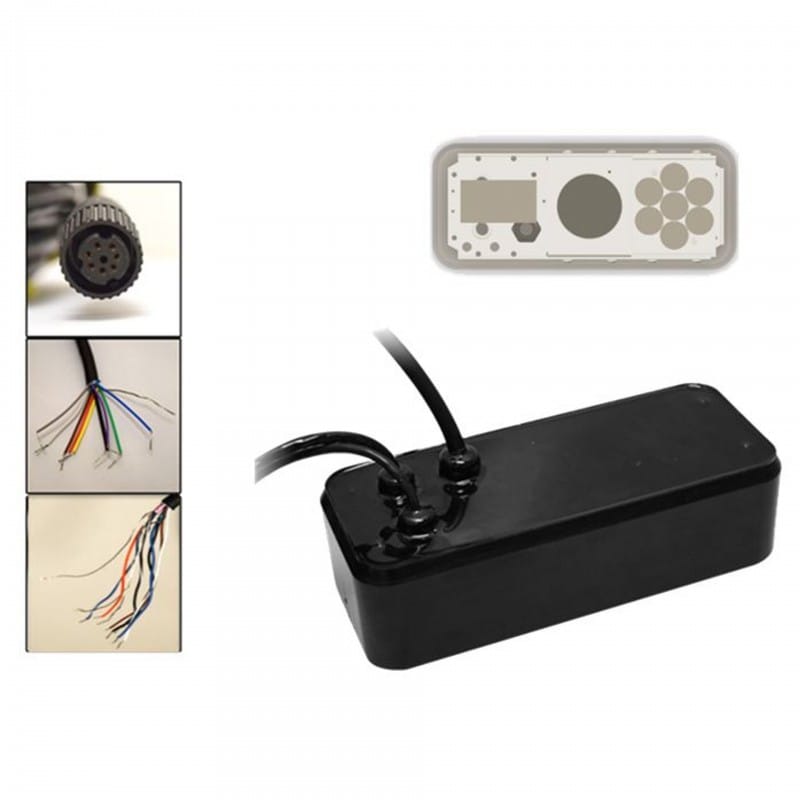

Furuno – 165T/275LHW Pocket Mount Combo Wide Beam Transducer f/DFF3D
Roll over image to zoom in
$2,330.00
The Furuno 165T/275LHW is a pocket mount combination transducer that merges DFF3D multibeam sonar and CHIRP wide beam technology, delivering unmatched underwater imaging and fish detection accuracy. Designed for seamless use with Furuno DFF3D and NavNet TZtouch3 systems, it provides both 3D and CHIRP sounder capabilities in a single, compact housing.
Condition: New
The Furuno 165T/275LHW Pocket Mount Combo Transducer combines the powerful 165T DFF3D Multibeam Sonar with the 275LHW CHIRP wide beam transducer to offer professional-grade sonar performance. This unique dual-element design enables real-time 3D imaging of the seabed and fish targets, while the CHIRP broadband function provides precise, high-resolution detection across both low and high frequency bands.
The wide beam design allows for broader coverage, ideal for tracking fish and structures under and around the vessel. Its pocket mount urethane housing ensures smooth water flow, reduced drag, and a clean installation suited for commercial and high-performance vessels.
Fully compatible with Furuno DFF3D modules and TZtouch3 displays, this transducer allows simultaneous 3D mapping and CHIRP operation for a complete underwater picture.
Key Features
-
Combines DFF3D Multibeam Sonar and CHIRP Wide Beam technologies
-
Provides both 3D bottom imaging and high-resolution CHIRP sounder functions
-
Wide beam coverage for superior target detection and tracking
-
Pocket mount design for smooth hull integration and minimal drag
-
Dual-frequency CHIRP operation: Low (42–65 kHz) / High (150–250 kHz)
-
Compatible with Furuno DFF3D and NavNet TZtouch3 systems
-
Durable urethane construction ideal for long-term marine applications
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | 165T/275LHW |
| MPN | 165T/275LHW |
| Condition | New |
| Transducer Type | Pocket Mount Combo (3D + CHIRP Wide Beam) |
| DFF3D Frequency | 165 kHz |
| CHIRP Frequency Range (Low) | 42–65 kHz |
| CHIRP Frequency Range (High) | 150–250 kHz |
| Power Output (CHIRP) | 1 kW |
| Beam Coverage (DFF3D) | 120° port-starboard |
| Material | Urethane pocket mount |
| Mounting Style | Pocket mount |
| Temperature Sensor | Included |
| Depth Capability | Up to 1,000 m (CHIRP) |
| Connector Type | 12-Pin |
| Cable Length | 10 m (33 ft) |
| Compatibility | Furuno DFF3D, NavNet TZtouch3 |
| Dimensions (Approx.) | 260 × 130 × 100 mm |
| Weight | Approx. 6.0 kg (13.2 lbs) |
Package Includes
-
165T/275LHW Pocket Mount Combo Transducer
-
Mounting Hardware
-
Sealing Components
-
Installation Manual
Compatibility
Compatible with: Furuno DFF3D Sonar Module, NavNet TZtouch3 MFDs
Optional Accessories: TZtouch3 Sounder Module, Cable Extensions, Fairing Block Kits
