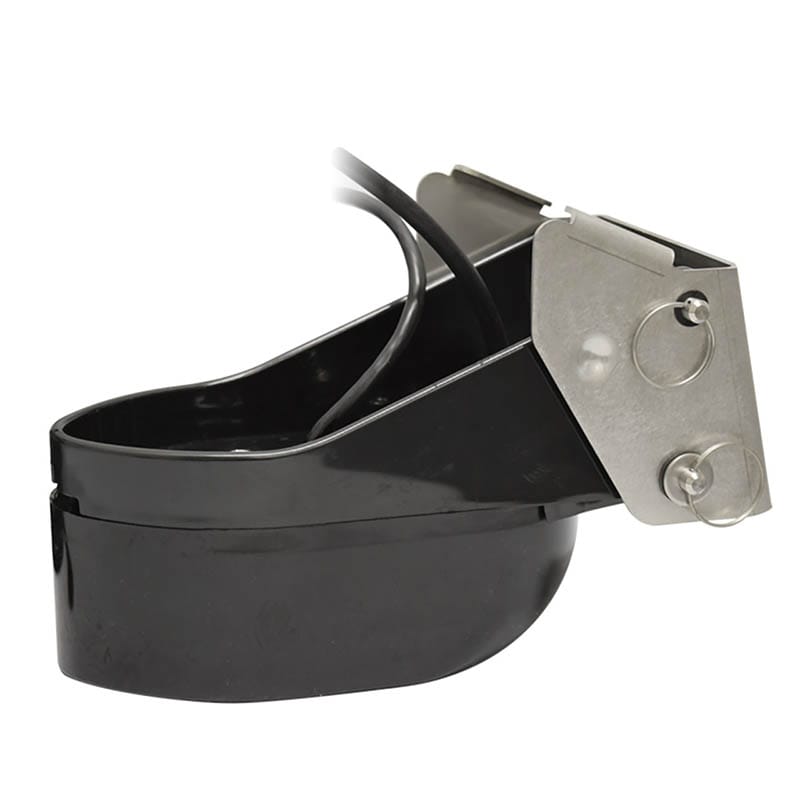

Furuno – 165T-50/200-TM260 Transducer f/DFF3D Transom Mount Combo
Roll over image to zoom in
$1,449.00
The Furuno 165T-50/200-TM260 is a transom mount combo transducer designed for use with Furuno DFF3D sonar modules. It combines 3D multibeam sonar and traditional 50/200 kHz echo sounder capabilities in one housing for superior underwater imaging and target detection.
Condition: New
The Furuno 165T-50/200-TM260 is a dual-function transom mount transducer engineered to deliver both 3D multibeam sonar and dual-frequency sounder performance.
Operating at 165 kHz for DFF3D and 50/200 kHz for traditional sonar, it offers detailed bottom imaging, fish detection, and 3D underwater visualization from a single mount. The transducer’s robust housing and transom-mount design make it ideal for small to medium-sized vessels seeking advanced sonar functionality without hull penetration.
With its integrated temperature sensor and wide 120° 3D coverage, the 165T-50/200-TM260 provides professional-grade sonar performance for sportfishing, research, or commercial use.
Key Features
-
3-in-1 Transducer: Combines DFF3D multibeam and 50/200 kHz dual-frequency sonar
-
Transom Mount Design: Simplified installation with no thru-hull drilling
-
Wide 120° Beam Coverage: Provides a detailed 3D view of underwater terrain
-
Durable Housing: Built for long-term reliability in saltwater environments
-
Integrated Temperature Sensor: Enables real-time water temperature monitoring
-
Compatible with Furuno DFF3D & NavNet TZtouch3 systems
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | 165T-50/200-TM260 |
| MPN | 165T-50/200-TM260 |
| Condition | New |
| Transducer Type | Transom Mount Combo |
| Frequencies | 50 kHz / 200 kHz (sounder) + 165 kHz (DFF3D) |
| Beam Coverage | 120° port-starboard (DFF3D) |
| Power Output | 1 kW (sounder) |
| Material | Urethane Housing |
| Temperature Sensor | Built-in |
| Depth Capability | Up to 1000 m (sounder), 300 m (3D) |
| Cable Length | 10 m (33 ft) |
| Connector Type | 7-pin + 10-pin |
| Mounting Type | Transom |
| Compatibility | Furuno DFF3D, NavNet TZtouch3 |
| Dimensions (Approx.) | 280 × 120 × 100 mm |
| Weight | Approx. 5.5 kg (12 lbs) |
Package Includes
-
165T-50/200-TM260 Transom Mount Combo Transducer
-
Mounting Bracket and Hardware
-
Sealing Components
-
User and Installation Manual
Compatibility
Compatible with: Furuno DFF3D Multibeam Sonar Module, NavNet TZtouch3 MFDs
Optional Accessories: Cable Extensions, Fairing Block Kits
