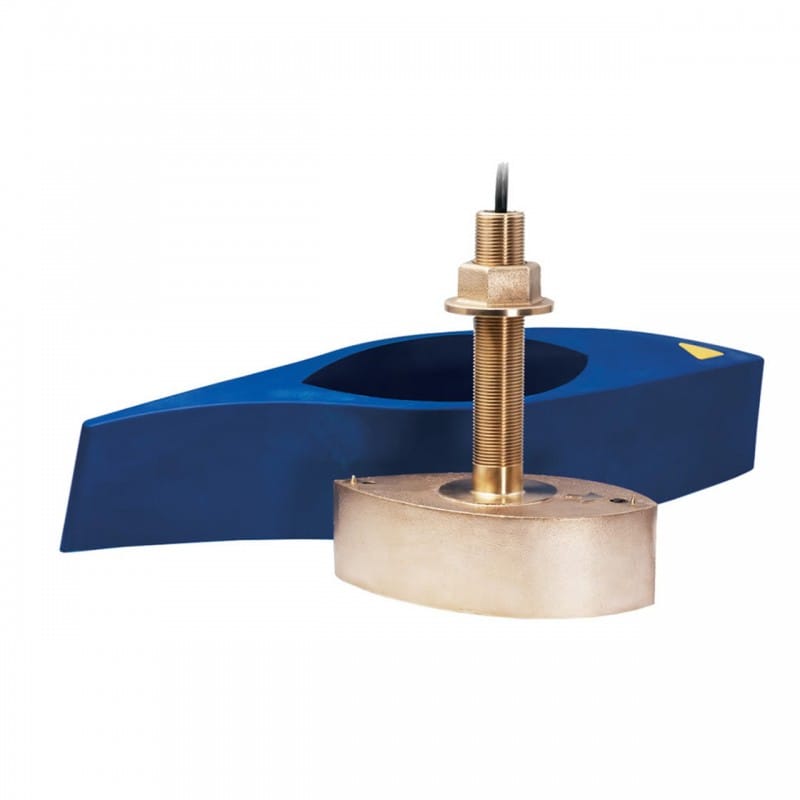

Furuno – B265LH Bronze Thru-Hull CHIRP Transducer – 12-Pin
Roll over image to zoom in
$1,000.00
The Furuno B265LH is a bronze thru-hull CHIRP transducer delivering precise, high-definition sonar performance across a wide depth range. With 1kW RMS power and dual-channel CHIRP operation (Low & High), it’s ideal for anglers seeking superior fish and bottom detection in both shallow and deep waters.
Condition: New
The Furuno B265LH Bronze Thru-Hull CHIRP Transducer is designed for professional-grade sonar applications, combining durability, sensitivity, and exceptional depth performance. Utilizing CHIRP technology, it transmits across a continuous frequency spectrum to deliver crystal-clear target separation and detailed imaging of fish and structure.
Its dual-channel frequency coverage—Low CHIRP (42–65 kHz) for deep water and High CHIRP (130–210 kHz) for shallow water—ensures optimal detection in all conditions. Constructed from marine-grade bronze, the B265LH offers long-lasting performance for fiberglass or wooden hulls.
The transducer’s 1kW power rating allows it to reach great depths while maintaining clear bottom tracking. Equipped with a 12-pin connector, it easily integrates with Furuno’s CHIRP-enabled fishfinders and MFDs, such as the DFF1-UHD, FCV-1150, and NavNet TZtouch series.
Key Features
-
Dual-channel Low (42–65 kHz) and High (130–210 kHz) CHIRP operation
-
1kW RMS power output for superior deep-water performance
-
Bronze thru-hull housing ideal for fiberglass or wooden hulls
-
12-pin Furuno connector for direct CHIRP plug-in compatibility
-
Excellent target separation and clarity across all depths
-
Integrated temperature sensor
-
Suitable for offshore, commercial, and sport fishing vessels
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | B265LH |
| MPN | B265LH |
| Condition | New |
| Transducer Type | Bronze Thru-Hull Dual Channel CHIRP |
| Frequency Range (Low) | 42–65 kHz |
| Frequency Range (High) | 130–210 kHz |
| Power Rating | 1 kW |
| Beamwidth (Low) | 25°–16° |
| Beamwidth (High) | 11°–6° |
| Housing Material | Bronze |
| Mounting Style | Thru-Hull |
| Connector Type | 12-Pin |
| Cable Length | 10 m (33 ft) |
| Depth Capability | Up to 1,000 m (3,280 ft) depending on conditions |
| Temperature Sensor | Included |
| Weight | Approx. 5.4 kg (12 lbs) |
| Compatible Systems | Furuno DFF1-UHD, DFF3D, FCV-1150, NavNet TZtouch / TZtouch2 / TZtouch3 |
Package Includes
-
B265LH Bronze Thru-Hull CHIRP Transducer (12-Pin)
-
Fairing Block Kit
-
Mounting Hardware
-
Installation Manual
Compatibility
Compatible with: Furuno DFF1-UHD, DFF3D, FCV-1150, NavNet TZtouch / TZtouch2 / TZtouch3
Optional Accessories: Extension cables, fairing block replacements, and CHIRP sounder modules
