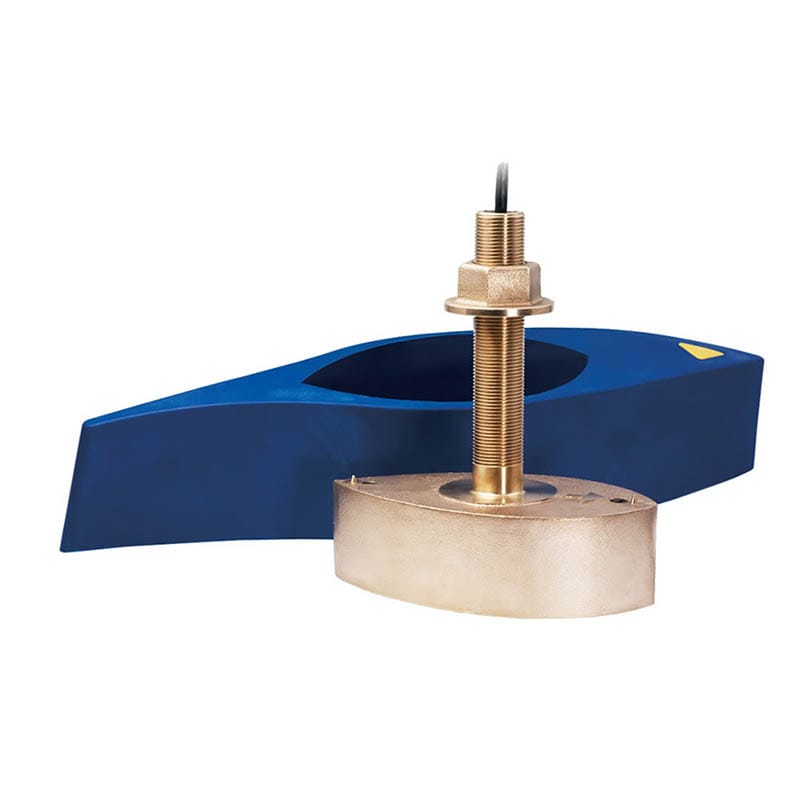

Furuno – B275LHW Bronze Thru-Hull CHIRP Transducer – 12-Pin
Roll over image to zoom in
$1,320.00
The Furuno B275LHW is a bronze thru-hull CHIRP transducer designed for superior deep and shallow water performance. Featuring 1kW output power and dual-channel CHIRP coverage (Low and High Wide), it provides crisp, detailed sonar returns for both bottom structure and fish targets.
Condition: New
The Furuno B275LHW Bronze Thru-Hull CHIRP Transducer delivers exceptional sonar clarity and target definition for professional and sport fishing applications. Utilizing CHIRP technology with wide bandwidth operation, it continuously sweeps through a range of frequencies to produce high-resolution images and accurate depth readings.
Built with a rugged bronze housing, this transducer is ideal for fiberglass or wooden hulls and supports installation on both powerboats and sailboats. Its 1kW power rating ensures excellent deep-water performance, while the High-Wide (HW) beam offers broader coverage and improved target separation in shallow to mid-depths.
The B275LHW comes equipped with a 12-pin connector, compatible with Furuno DFF1-UHD, DFF3D, FCV-1150, and NavNet TZtouch/TZtouch3 systems, ensuring seamless integration into your marine electronics network.
Key Features
-
Dual-channel Low CHIRP (42–65 kHz) and High-Wide CHIRP (150–250 kHz) operation
-
1kW RMS power for superior performance in deep and shallow waters
-
Bronze thru-hull housing for long-lasting durability
-
12-pin Furuno connector for direct plug-and-play installation
-
Provides precise target separation and bottom tracking
-
Ideal for offshore and coastal fishing applications
-
Compatible with Furuno CHIRP-enabled sounders and MFDs
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | B275LHW |
| MPN | B275LHW |
| Condition | New |
| Transducer Type | Bronze Thru-Hull Dual Channel CHIRP |
| Frequency Range (Low) | 42–65 kHz |
| Frequency Range (High-Wide) | 150–250 kHz |
| Power Rating | 1 kW |
| Beamwidth (Low) | 25°–16° |
| Beamwidth (High-Wide) | 25° constant |
| Housing Material | Bronze |
| Mounting Style | Thru-Hull |
| Connector Type | 12-Pin |
| Cable Length | 10 m (33 ft) |
| Depth Capability | Up to 1,200 m (3,937 ft) depending on conditions |
| Temperature Sensor | Included |
| Weight | Approx. 5.4 kg (12 lbs) |
| Compatible Systems | Furuno DFF1-UHD, DFF3D, FCV-1150, NavNet TZtouch / TZtouch2 / TZtouch3 |
Package Includes
-
B275LHW Bronze Thru-Hull CHIRP Transducer (12-Pin)
-
Fairing Block Kit
-
Mounting Hardware
-
Installation Manual
Compatibility
Compatible with: Furuno DFF1-UHD, DFF3D, FCV-1150, NavNet TZtouch / TZtouch2 / TZtouch3
Optional Accessories: Extension cable assemblies, bronze fairing block replacement kits
