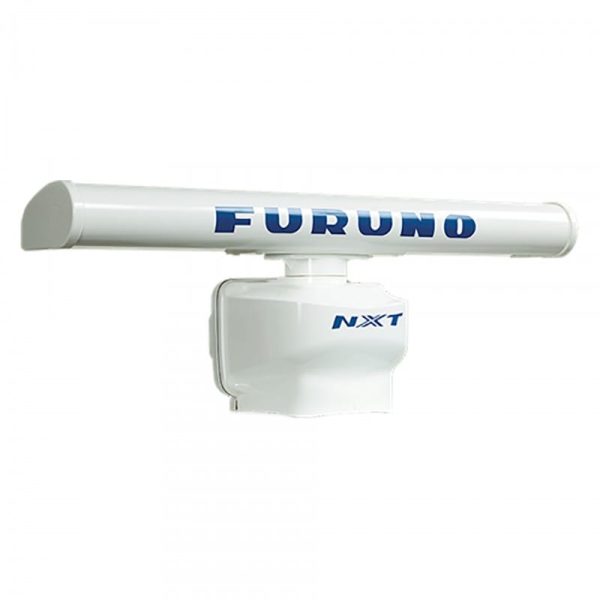

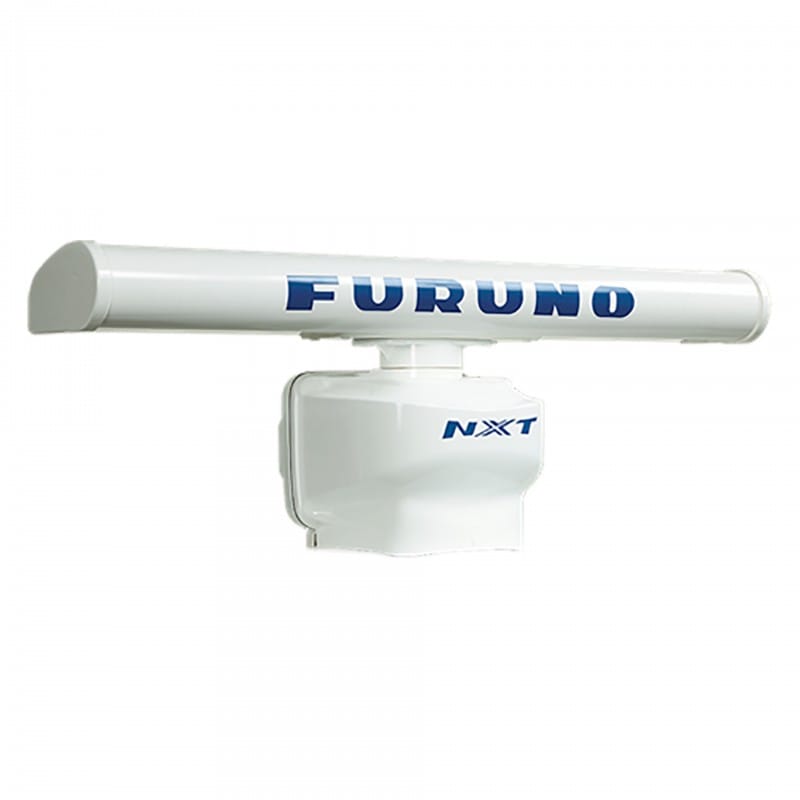

Furuno – DRS25ANXT/4 Radar Pedestal 4′ Array – 15M Cable
Roll over image to zoom in
$5,840.00
The Furuno DRS25ANXT/4 delivers cutting-edge solid-state Doppler radar performance with a 4-foot open array antenna and 15-meter cable. Featuring 25W of solid-state output, Target Analyzer™, and Fast Target Tracking™ (ARPA), it ensures the highest level of safety, clarity, and situational awareness on the water.
Condition: New
The Furuno DRS25ANXT/4 Solid-State Doppler Radar combines the latest NXT radar technology with Furuno’s legendary marine reliability. Designed for both professional and high-performance recreational vessels, this radar provides crystal-clear target separation, instant-on readiness, and maintenance-free operation thanks to its magnetron-free solid-state design.
The 4-foot open array antenna offers the ideal balance between compact installation and extended range visibility — perfect for coastal cruising and offshore navigation. With Target Analyzer™, moving targets approaching your vessel are automatically highlighted in red, while those moving away appear green, improving safety at a glance.
With Fast Target Tracking™ (ARPA) and RezBoost™ beam sharpening, the DRS25ANXT/4 delivers exceptional resolution and tracking accuracy. It integrates seamlessly with NavNet TZtouch, TZtouch2, and TZtouch3 MFDs, enabling a modern, networked bridge solution.
Key Features
-
25W Solid-State Doppler Radar – maintenance-free, magnetron-free design
-
4-foot open array antenna – excellent range and compact footprint
-
Target Analyzer™ for instant recognition of moving targets
-
Fast Target Tracking™ (ARPA) – automatically tracks up to 100 targets
-
RezBoost™ beam sharpening – enhanced target definition
-
Dual-range mode to monitor near and distant targets simultaneously
-
Instant-on operation with zero warm-up time
-
Quiet, energy-efficient motor and rotation
-
15-meter signal cable included for flexible installation
-
Seamless integration with Furuno NavNet TZtouch series
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | DRS25ANXT/4 |
| Radar Type | Solid-State Doppler (NXT Series) |
| Output Power | 25 W (Solid-State Equivalent to 25 kW) |
| Antenna Type | 4 ft Open Array |
| Beam Width | 1.9° Horizontal |
| Range | 0.125 to 96 NM |
| Rotation Speed | 24/36/48 RPM (Selectable) |
| Target Tracking (ARPA) | Up to 100 targets |
| Features | Target Analyzer™, Fast Target Tracking™, RezBoost™ |
| Compatible Displays | NavNet TZtouch / TZtouch2 / TZtouch3 |
| Interface | Ethernet |
| Power Supply | 12–24 V DC |
| Waterproof Rating | IP56 |
| Cable Length | 15 m |
| Operating Temperature | -25°C to +55°C |
| Weight (Pedestal + Array) | Approx. 24 kg |
Package Includes
-
DRS25ANXT Radar Pedestal (Solid-State)
-
4 ft Open Array Antenna
-
15 m Signal Cable
-
Mounting Hardware
-
Installation Manual
Compatibility
-
Compatible Displays:
-
Furuno NavNet TZtouch
-
Furuno NavNet TZtouch2
-
Furuno NavNet TZtouch3
-
-
Optional Accessories:
-
10 m or 20 m signal cables (sold separately)
-
Antenna mounting brackets and power kits
-
