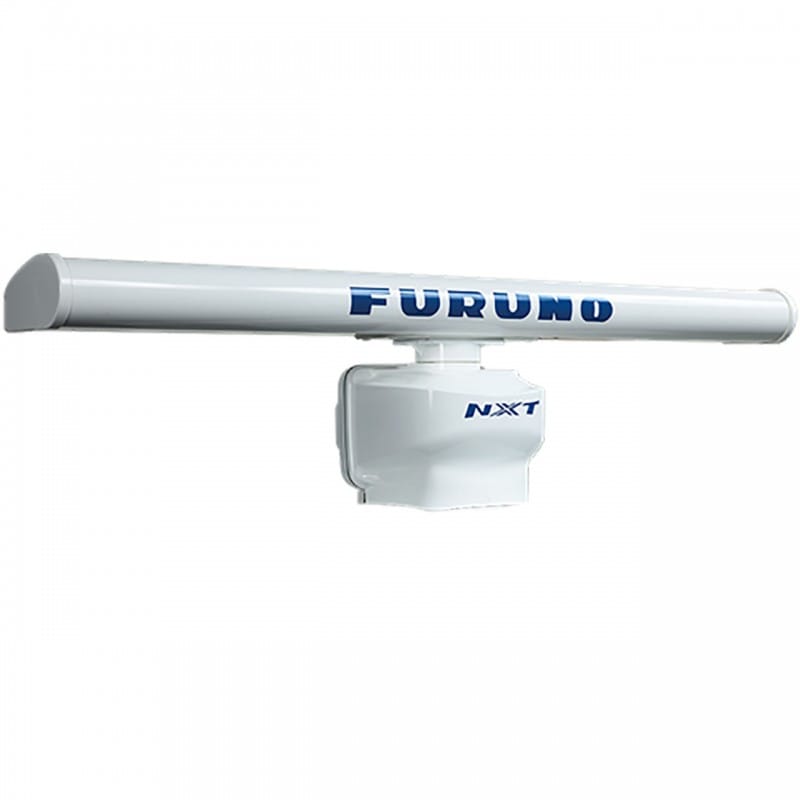

Furuno – DRS25ANXT/6 Radar Pedestal 6′ Array – 15M Cable
Roll over image to zoom in
$6,210.00
The Furuno DRS25ANXT/6 is a 25W Solid-State Doppler Radar System featuring a 6-foot open array antenna and 15-meter signal cable. Built with NXT radar technology, it delivers unrivaled target detection, ARPA tracking, and Doppler-based safety features for both recreational and professional vessels.
Condition: New
The Furuno DRS25ANXT/6 Solid-State Doppler Radar sets a new benchmark in marine radar technology. Using Furuno’s NXT (Solid-State Doppler) technology, it provides clear and precise target detection with instant-on operation, zero warm-up time, and no magnetron maintenance.
With 25W of solid-state output power and a 6-foot open array antenna, this radar system offers superior target resolution and extended detection range up to 96 nautical miles. The integrated Target Analyzer™ function utilizes Doppler shift technology to automatically highlight approaching targets in red and retreating ones in green—enhancing situational awareness and collision avoidance.
The DRS25ANXT/6 connects seamlessly to NavNet TZtouch, TZtouch2, and TZtouch3 multifunction displays, delivering a fully integrated, real-time radar overlay and target tracking experience.
Key Features
-
25W Solid-State Doppler Radar with NXT technology
-
6-foot open array antenna for high-definition long-range detection
-
Target Analyzer™ color-codes moving targets for instant recognition
-
Fast Target Tracking™ (ARPA) automatically tracks up to 100 targets
-
RezBoost™ beam sharpening for improved resolution and clarity
-
No magnetron – zero maintenance and instant-on operation
-
Dual-range display to monitor near and far targets simultaneously
-
Automatic gain, sea, and rain clutter control
-
Quiet and efficient rotation mechanism
-
15-meter signal cable included for easy installation
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | DRS25ANXT/6 |
| Radar Type | Solid-State Doppler (NXT Series) |
| Output Power | 25 W (Equivalent to 25 kW Magnetron) |
| Antenna Type | 6 ft Open Array |
| Beam Width | 1.35° Horizontal |
| Range | 0.125 to 96 NM |
| Rotation Speed | 24/36/48 RPM (Selectable) |
| Target Tracking (ARPA) | Up to 100 targets |
| Features | Target Analyzer™, Fast Target Tracking™, RezBoost™ |
| Compatible Displays | NavNet TZtouch / TZtouch2 / TZtouch3 |
| Interface | Ethernet |
| Power Supply | 12–24 V DC |
| Waterproof Rating | IP56 |
| Cable Length | 15 m |
| Operating Temperature | -25°C to +55°C |
| Weight (Pedestal + Array) | Approx. 25 kg |
Package Includes
-
DRS25ANXT Radar Pedestal (Solid-State)
-
6 ft Open Array Antenna
-
15 m Signal Cable
-
Mounting Hardware
-
Installation Manual
Compatibility
-
Compatible Displays:
-
Furuno NavNet TZtouch
-
Furuno NavNet TZtouch2
-
Furuno NavNet TZtouch3
-
-
Optional Accessories:
-
10 m or 20 m signal cables (sold separately)
-
Antenna mounting brackets (optional)
-
