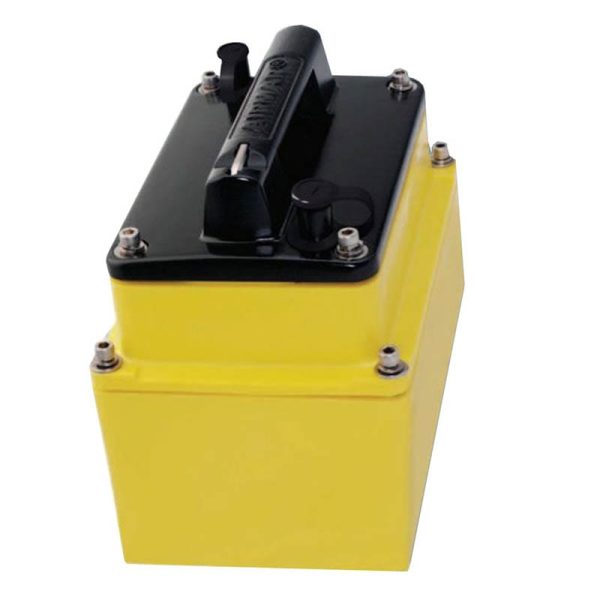

Furuno – M260 In-Hull 1kW Transducer with No Connector
Roll over image to zoom in
$630.00
The Furuno M260 In-Hull 1kW Transducer delivers powerful sonar performance and exceptional target detail without drilling through the hull. Designed for high-power sounders, it offers deep-water penetration and precise fish and bottom detection.
Condition: New
The Furuno M260 In-Hull 1kW Transducer is a high-performance transducer designed for serious anglers and commercial vessels. Installed inside the hull, it transmits through solid fiberglass to eliminate the need for hull penetration—ideal for boats that cannot accommodate thru-hull transducers.
Featuring a 1 kW RMS output, the M260 provides superior performance in deep water while maintaining excellent target resolution and separation. Its broadband ceramic array ensures accurate depth readings and consistent performance even at high speeds.
The M260 is fully compatible with a wide range of Furuno fishfinders and sounder modules, making it a reliable choice for professional and recreational marine applications.
Key Features
-
In-hull mounting — no need to drill through the hull
-
1 kW RMS power for deep-water performance and clear target definition
-
Broadband ceramic array for superior resolution
-
Works through solid fiberglass hulls up to 5/8″ (15 mm)
-
Ideal for high-speed and deep-water vessels
-
Compatible with Furuno sounders and CHIRP modules
-
No connector — allows custom wiring for various installations
Key Technical Specifications
| Specification | Details |
|---|---|
| Brand | Furuno |
| Model | M260 |
| MPN | M260 |
| Condition | New |
| Type | In-Hull Transducer |
| Power Rating | 1 kW RMS |
| Frequency | 50 kHz (45° beam) & 200 kHz (12° beam) |
| Mounting Style | In-Hull (tank-mounted) |
| Hull Type Compatibility | Solid fiberglass only (no foam or core) |
| Cable Length | 10 m (no connector) |
| Max Depth | 800–1200 m (depending on frequency and conditions) |
| Temperature Sensor | No |
| Connector Type | None (bare wire for custom installation) |
| Dimensions | Tank: 206 mm diameter × 100 mm height (approx.) |
| Weight | Approx. 3.2 kg |
| Waterproof Rating | IP68 (tank assembly) |
| Power Supply | 12–24 V DC (via sounder) |
| Country of Origin | Japan |
Package Includes
-
Furuno M260 In-Hull 1kW Transducer (No Connector)
-
Mounting Tank Assembly
-
Installation Hardware
-
User and Installation Manual
Compatibility
Compatible with:
Furuno DFF1, DFF3, DFF1-UHD, FCV Series, and NavNet TZtouch / TZtouch2 / TZtouch3 / TZtouch4 when used with compatible sounder modules.
Optional Accessories:
Mixing Tank Fluid Kit, Custom Connector Kits, and Cable Extension Assemblies
