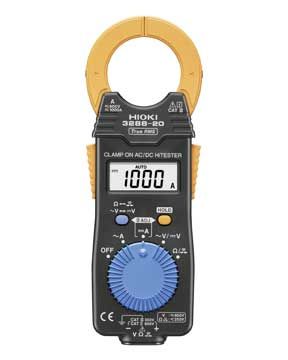

Hioki 3288-20

• True RMS measurement, allowing it to accurately measure current input despite distortion caused by a poor power supply environment or other issues
• This capability makes the instrument an excellent choice for use in inverter inspection and maintenance applications
• Compact, low-profile, lightweight body with exceptional portability
• DC current 100.0/1,000 A, 2 ranges
• Basic accuracy: ±1.5% rdg., ±5 dgt.
• AC current 100.0/1,000 A, 2 ranges
• Basic accuracy: ±1.5% rdg., ±5 dgt
• DC voltage 420.0m/4.200/42.00/420.0/600 V, 5 ranges
• Basic accuracy: ±1.3% rdg., ±4 dgt.
• Maximum conductor diameter 35 mm
• Dimensions and weight 57 (W) × 180 (H) × 16 (D) mm, 150 g
• Continuous operating time 35 h
• Resistance 420.0/4.200k/42.00k/420.0k/4.200M/42.00MO, 6 ranges
• Basic accuracy: ±2% rdg., ±4 dgt.
• Other functions Buzzer at continuity of (50Ω ±40Ω) or less, data hold, auto power save, auto zeroing (DC A)
• Display LCD, max. 4,199 dgt., display refresh rate: 2.5 times/sec

>

Each Unit Includes

• Test Lead
• Portable Case
