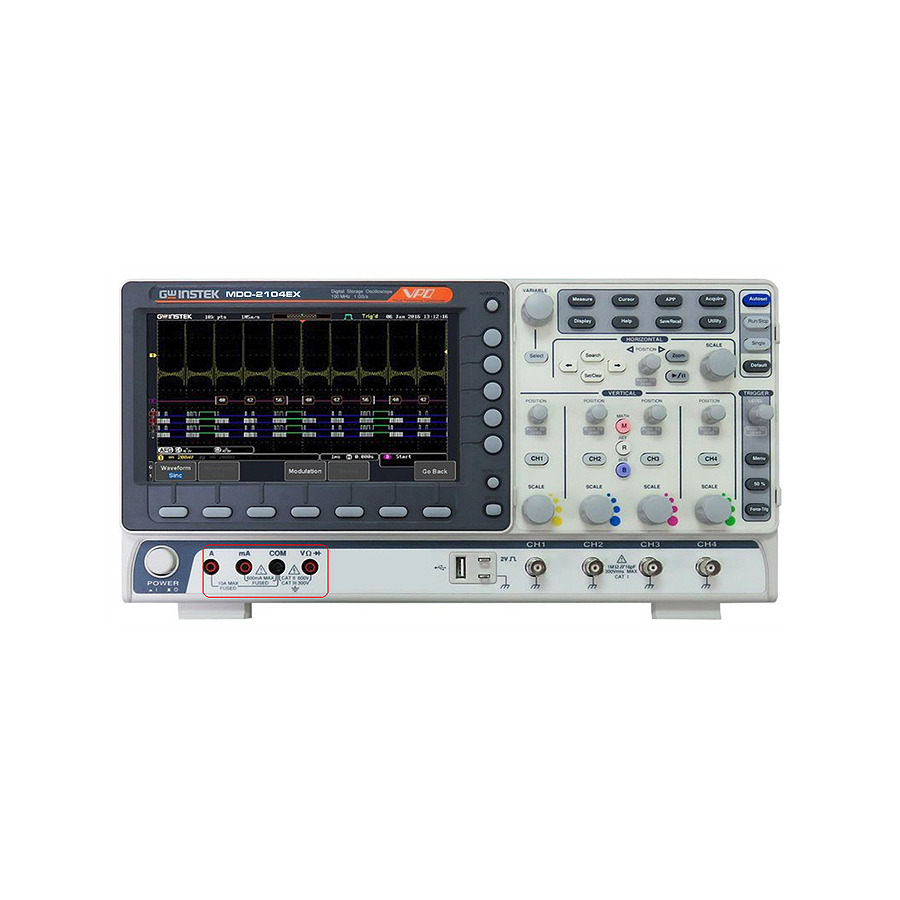

Instek MDO-2104EX: The Ultimate Mixed Domain Oscilloscope for Precision Analysis
Roll over image to zoom in
$1,208.00
Instek MDO-2104EX Mixed Domain Oscilloscope: 4-channel, 100 MHz bandwidth, 10 Mpts memory depth, 1 GS/s sample rate, DMM functionality. Ideal for electronic design, troubleshooting, and analysis.
Condition: New
Instek MDO-2104EX Mixed Domain Oscilloscope, DMM, 4 CH, 100 MHz, 10 Mpts, 1 GS/s, MDO-2000E Series
Product Overview:
The Instek MDO-2104EX is a versatile mixed domain oscilloscope that combines the functionality of an oscilloscope, digital multimeter (DMM), and spectrum analyzer into a single, compact instrument. With its 4 analog channels, 100 MHz bandwidth, 10 Mpts memory depth, and 1 GS/s sampling rate, the MDO-2104EX provides exceptional signal acquisition and analysis capabilities.
Features and Specifications:
4 analog channels with 100 MHz bandwidth
10 Mpts memory depth per channel
1 GS/s maximum sampling rate
Built-in 6.5-digit DMM with 0.015% basic accuracy
Spectrum analyzer function with 100 MHz frequency range
8.5-inch TFT LCD display with 800 x 480 resolution
USB, LAN, and GPIB interfaces for remote control and data transfer
Benefits:
Comprehensive signal analysis: The MDO-2104EX allows you to capture, analyze, and display a wide range of signals, including analog, digital, and RF.
Enhanced troubleshooting capabilities: The built-in DMM and spectrum analyzer provide additional diagnostic tools for troubleshooting complex electronic systems.
Compact and portable: The MDO-2104EX is designed to be compact and portable, making it ideal for field service and on-the-go applications.
User-friendly interface: The intuitive user interface and large display make the MDO-2104EX easy to operate and navigate.
Exceptional value: The MDO-2104EX offers exceptional value by combining multiple instruments into a single, cost-effective package.
What’s in the Box:
Instek MDO-2104EX Mixed Domain Oscilloscope
4 passive probes
Power cord
USB cable
LAN cable
GPIB cable
* User manual
Additional information
| Brand | Instek |
|---|
