Keysight 16192A/701/710: Precision SMD Test Fixture with Enhanced Inspection Tools
Roll over image to zoom in
$4,328.00
Keysight 16192A/701/710 Parallel Electrode SMD Test Fixture with Short Bar Set, Magnifying Lens, and Tweezers for precise testing and inspection of surface-mount devices (SMDs).
Condition: New
Features and Specifications
Keysight 16192A/701/710 Parallel Electrode SMD Test Fixture
Features:
Designed for testing surface-mount devices (SMDs) with parallel electrodes
Provides precise alignment and contact with the device under test (DUT)
Accommodates a wide range of SMD sizes and pitches
Includes a built-in magnifying lens for easy viewing of the DUT
Comes with a set of tweezers for handling the DUT
Specifications:
Contact resistance: <10 mΩ
Insulation resistance: >100 MΩ
Capacitance: <1 pF
Inductance: <1 nH
Maximum voltage: 50 V
Maximum current: 1 A
Product Overview
The Keysight 16192A/701/710 Parallel Electrode SMD Test Fixture is a versatile and easy-to-use tool for testing SMDs. It provides precise alignment and contact with the DUT, ensuring accurate and reliable measurements. The built-in magnifying lens and tweezers make it easy to view and handle the DUT, even under magnification.

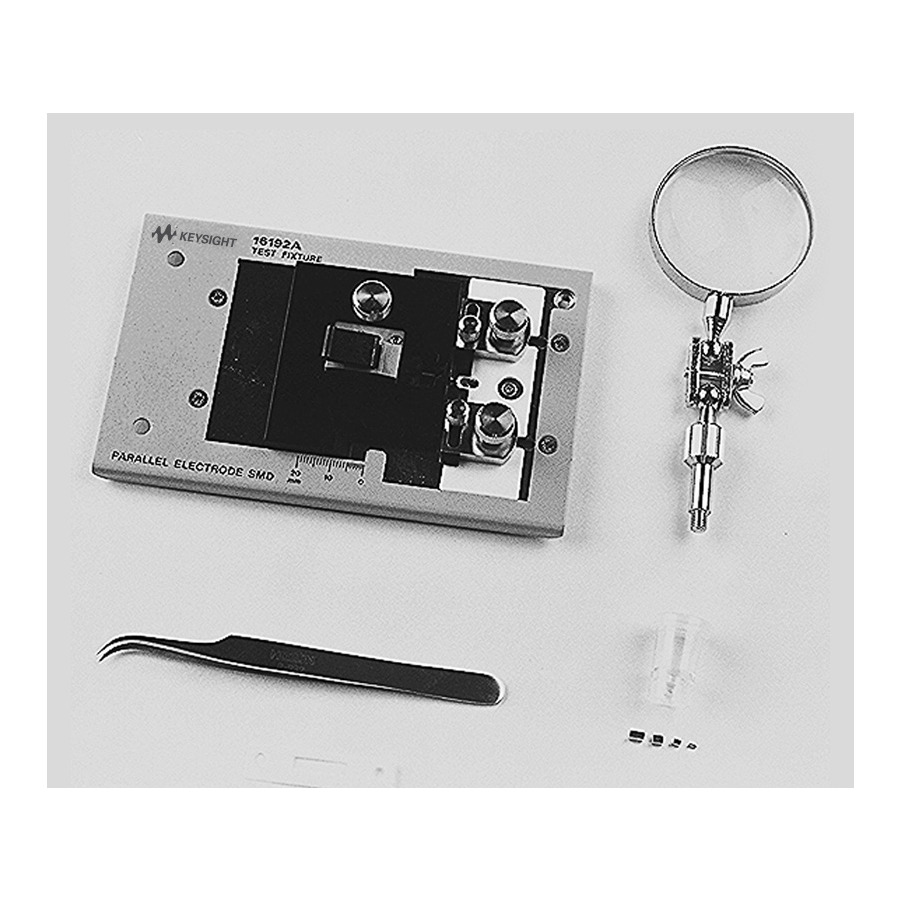

What’s in the Box
Keysight 16192A/701/710 Parallel Electrode SMD Test Fixture
Short bar set
Magnifying lens
Tweezers
Benefits
Accurate and reliable measurements: The precise alignment and contact provided by the test fixture ensure accurate and reliable measurements.
Easy to use: The built-in magnifying lens and tweezers make it easy to view and handle the DUT, even under magnification.
Versatile: The test fixture can accommodate a wide range of SMD sizes and pitches, making it suitable for a variety of applications.
Value
The Keysight 16192A/701/710 Parallel Electrode SMD Test Fixture is a valuable tool for anyone who needs to test SMDs. It provides accurate and reliable measurements, is easy to use, and is versatile enough to handle a wide range of applications.
Additional information
| Brand | Keysight |
|---|
