Keysight Hi-Z Series Passive Probe: 1 GHz, 4 pF, 300 V, CAT2

Features and Specifications

Keysight PP0001A/PP0004 Passive Probe / Adapter, 1 GHz, 4 pF, 300 V, CAT2, Hi-Z Series

Features:

Bandwidth: 1 GHz
Input capacitance: 4 pF
Input resistance: 10 MΩ
Maximum input voltage: 300 V CAT II
Compensation range: 10 pF to 30 pF
Ground lead length: 1.5 m (5 ft)
Probe tip diameter: 0.5 mm (0.02 in)
Probe tip length: 10 mm (0.4 in)
Probe weight: 100 g (3.5 oz)

Accuracy: ±2%
Linearity: ±0.5%
Temperature range: 0°C to 50°C (32°F to 122°F)
Humidity range: 0% to 90% RH
Altitude range: 0 to 2000 m (0 to 6562 ft)

Product Overview

The Keysight PP0001A/PP0004 Passive Probe / Adapter is a high-quality probe designed for use with oscilloscopes and other test equipment. It features a wide bandwidth of 1 GHz, a low input capacitance of 4 pF, and a high input resistance of 10 MΩ. This makes it ideal for measuring high-frequency signals with minimal loading. The probe also has a maximum input voltage of 300 V CAT II, making it suitable for use in a variety of applications.

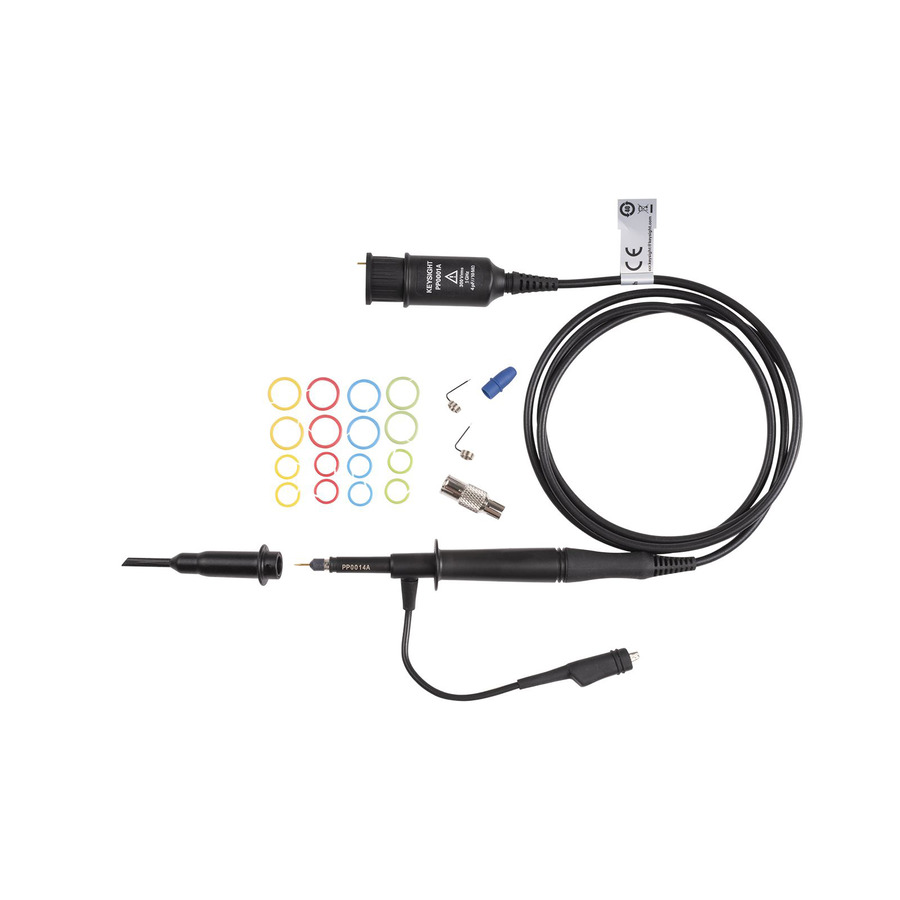

What’s in the Box

Keysight PP0001A/PP0004 Passive Probe / Adapter
Ground lead
Probe tip
User manual

Benefits

High bandwidth for measuring high-frequency signals
Low input capacitance for minimal loading
High input resistance for accurate measurements
Maximum input voltage of 300 V CAT II for use in a variety of applications
* Durable construction for long-lasting use

Value

The Keysight PP0001A/PP0004 Passive Probe / Adapter is a valuable tool for any engineer or technician who needs to measure high-frequency signals. It is accurate, reliable, and durable, and it comes with a one-year warranty.
