Keysight N2796A: 2 GHz Active Oscilloscope Probe for Precision Measurements

Keysight N2796A Active Oscilloscope Probe

Features and Specifications:

Bandwidth: 2 GHz
Input Impedance: 1 MOhm
Input Capacitance: 1 pF
Rise Time: 175 ps
Maximum Input Voltage: 10 Vpk
Probe Attenuation: 10:1
Probe Length: 1.2 m
Weight: 0.2 kg

Product Overview:

The Keysight N2796A is a high-performance active oscilloscope probe designed for use with oscilloscopes with a bandwidth of 2 GHz or higher. It features a low input capacitance of 1 pF, which minimizes loading on the circuit under test. The probe also has a high input impedance of 1 MOhm, which ensures that it does not affect the circuit’s operation.

The N2796A is ideal for use in a variety of applications, including:

Debugging high-speed digital circuits
Characterizing RF components
Measuring the performance of power supplies
Troubleshooting EMI/RFI issues

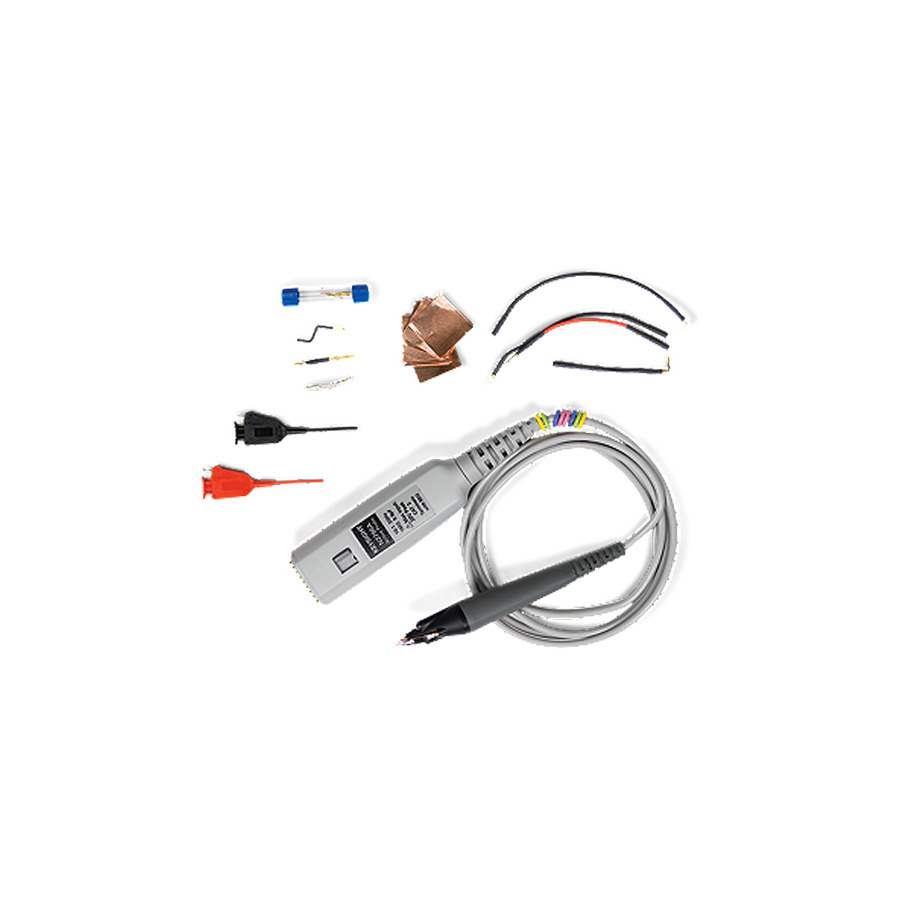

What’s in the Box:

Keysight N2796A Active Oscilloscope Probe
Ground lead
Probe tip
Carrying case

Benefits:

High bandwidth and low input capacitance for accurate measurements
High input impedance to minimize circuit loading
Compact and lightweight design for easy handling
Durable construction for long-lasting use

Value to the Customer:

The Keysight N2796A Active Oscilloscope Probe is a valuable tool for engineers and technicians who need to make accurate measurements on high-speed circuits. It provides the performance and reliability needed to troubleshoot complex problems and ensure that circuits are operating properly.
