Keysight N7020A: Precision Power Rail Probe for Advanced Power Analysis

Features and Specifications

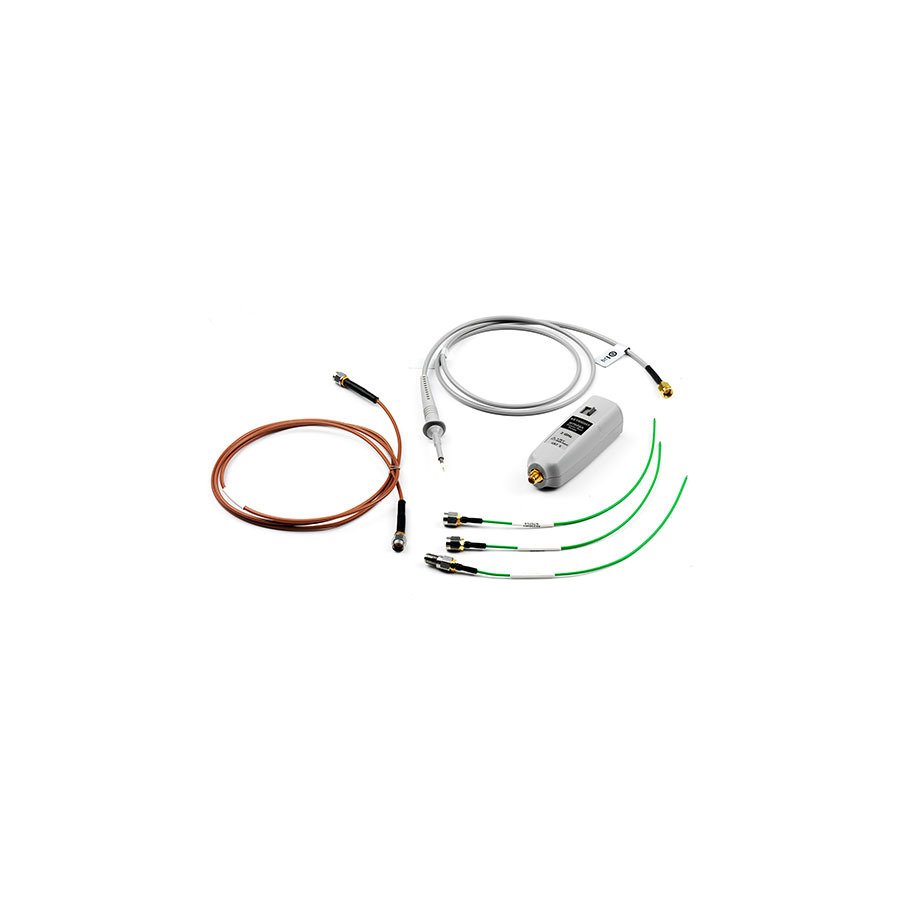

Keysight N7020A Power Rail Probe

Product Overview

The Keysight N7020A Power Rail Probe is a high-performance probe designed for accurate and reliable power rail measurements. It features a wide bandwidth of 2 GHz, a 1:1 attenuation ratio, a 24 V offset, and an 850 mV active range. The probe also has a 50 kOhm DC input impedance, making it suitable for a wide range of applications.

Features

Wide bandwidth of 2 GHz
1:1 attenuation ratio
24 V offset
850 mV active range
50 kOhm DC input impedance
Low noise and distortion
High accuracy and repeatability
Easy to use

Specifications

Bandwidth: 2 GHz
Attenuation ratio: 1:1
Offset: 24 V
Active range: 850 mV
DC input impedance: 50 kOhm
Noise: < 10 µVrms
Distortion: < 0.1%
Accuracy: ±1%
Repeatability: ±0.5%

Keysight N7020A Power Rail Probe
Quick start guide
Certificate of calibration

Benefits

Accurate and reliable power rail measurements
Wide bandwidth for high-speed applications
High offset for measuring high-voltage rails
Low noise and distortion for clean signals
* Easy to use for quick and efficient measurements

Value

The Keysight N7020A Power Rail Probe is a valuable tool for engineers and technicians who need to make accurate and reliable power rail measurements. It is ideal for a wide range of applications, including power supply design, power integrity analysis, and EMI troubleshooting.
