Keysight N7024A: Uncover Power Rail Issues with Precision and Efficiency

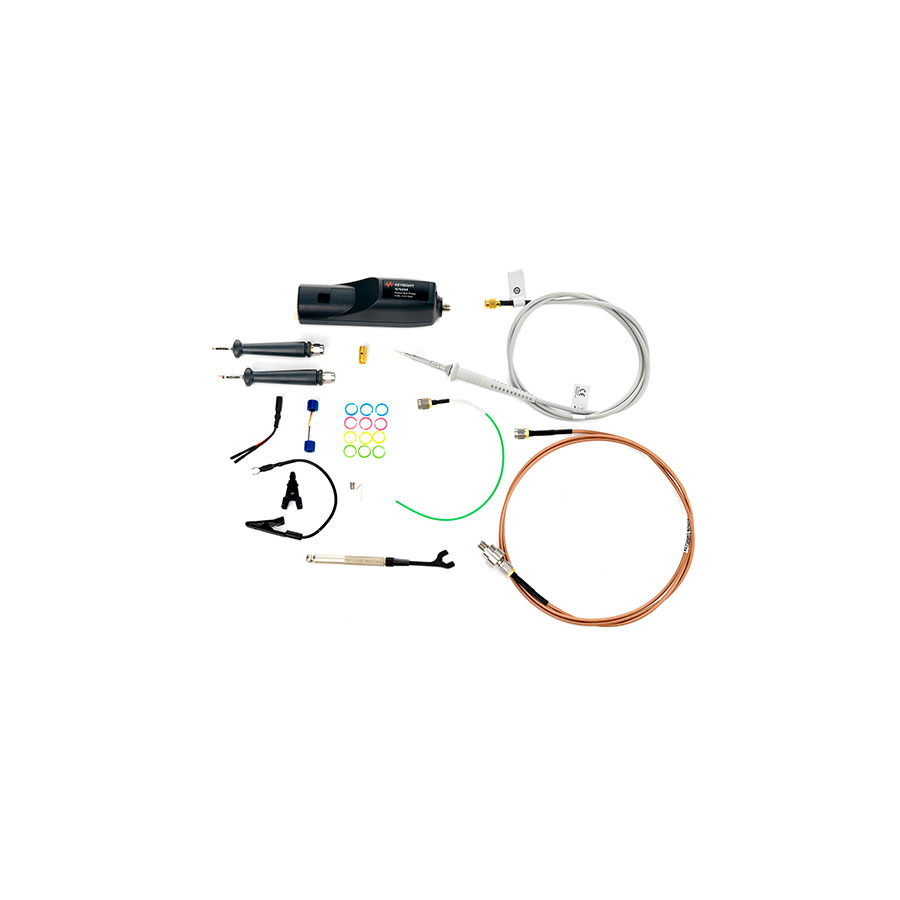

Keysight N7024A 6GHz Power Rail Probe

Features and Specifications

Frequency range: 100 MHz to 6 GHz
Bandwidth: 1 GHz
Sensitivity: -50 dBm
Dynamic range: 80 dB
Input impedance: 50 ohms
Maximum input power: +20 dBm
Probe length: 12 inches
Weight: 4 ounces

Product Overview

The Keysight N7024A 6GHz Power Rail Probe is a high-performance probe designed for measuring power rails in high-speed digital circuits. The probe features a wide frequency range, high bandwidth, and high sensitivity, making it ideal for measuring power rails in a variety of applications, including:

Power integrity analysis
Signal integrity analysis
EMI troubleshooting
Device characterization

What’s in the Box

Keysight N7024A 6GHz Power Rail Probe
Probe tip
Ground lead
Carrying case

Benefits

High performance: The N7024A Power Rail Probe offers excellent performance, with a wide frequency range, high bandwidth, and high sensitivity. This makes it ideal for measuring power rails in high-speed digital circuits.
Easy to use: The N7024A Power Rail Probe is easy to use, with a simple and intuitive interface. The probe can be quickly and easily connected to a power rail, and the measurements can be viewed on a variety of oscilloscopes.
* Versatile: The N7024A Power Rail Probe is a versatile probe that can be used for a variety of applications, including power integrity analysis, signal integrity analysis, EMI troubleshooting, and device characterization.

Value

The Keysight N7024A 6GHz Power Rail Probe is a valuable tool for engineers who need to measure power rails in high-speed digital circuits. The probe offers excellent performance, is easy to use, and is versatile. The N7024A Power Rail Probe is a valuable addition to any engineer’s toolkit.
