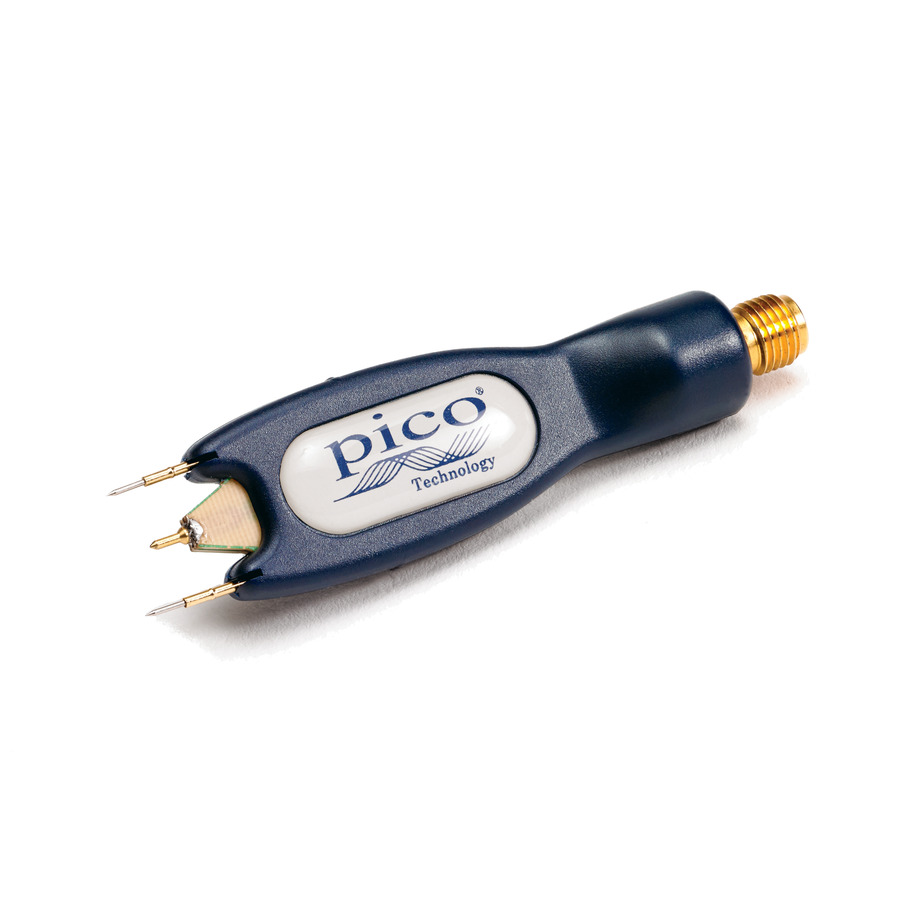

PicoConnect 915: 5 GHz, 5X, 0.3 pF, 8 V AC Coupled Passive Probe for RF Applications

PicoConnect 915 AC Coupled Passive Probe, 5 GHz, 5X, 0.3 pF, 8 V, PicoConnect 900 RF Series

Product Overview

The PicoConnect 915 is a high-performance, AC-coupled passive probe designed for use with oscilloscopes and other test equipment. It offers a wide bandwidth of 5 GHz, a high input impedance of 10 MΩ, and a low capacitance of 0.3 pF. This makes it ideal for measuring high-frequency signals in a variety of applications, including RF design, telecommunications, and power electronics.

Features and Specifications

Bandwidth: 5 GHz
Input impedance: 10 MΩ
Input capacitance: 0.3 pF
Attenuation: 5X
Maximum input voltage: 8 V
Probe tip: Grounded
Probe length: 12 inches
Weight: 4 ounces

What’s in the Box

PicoConnect 915 AC Coupled Passive Probe
Ground lead
Calibration certificate

High bandwidth for measuring high-frequency signals
High input impedance for minimizing loading effects
Low capacitance for preserving signal integrity
Compact and lightweight for easy handling
Durable construction for long-lasting use

Value to the Customer

The PicoConnect 915 is a valuable tool for engineers and technicians who need to measure high-frequency signals accurately and reliably. Its high performance and ease of use make it an ideal choice for a variety of applications.
