RIGOL DSA832-TG: Precision RF Spectrum Analyzer with Tracking Generator for Enhanced Signal Analysis

Features and Specifications: RIGOL DSA832-TG RF Spectrum Analyzer

Product Overview:

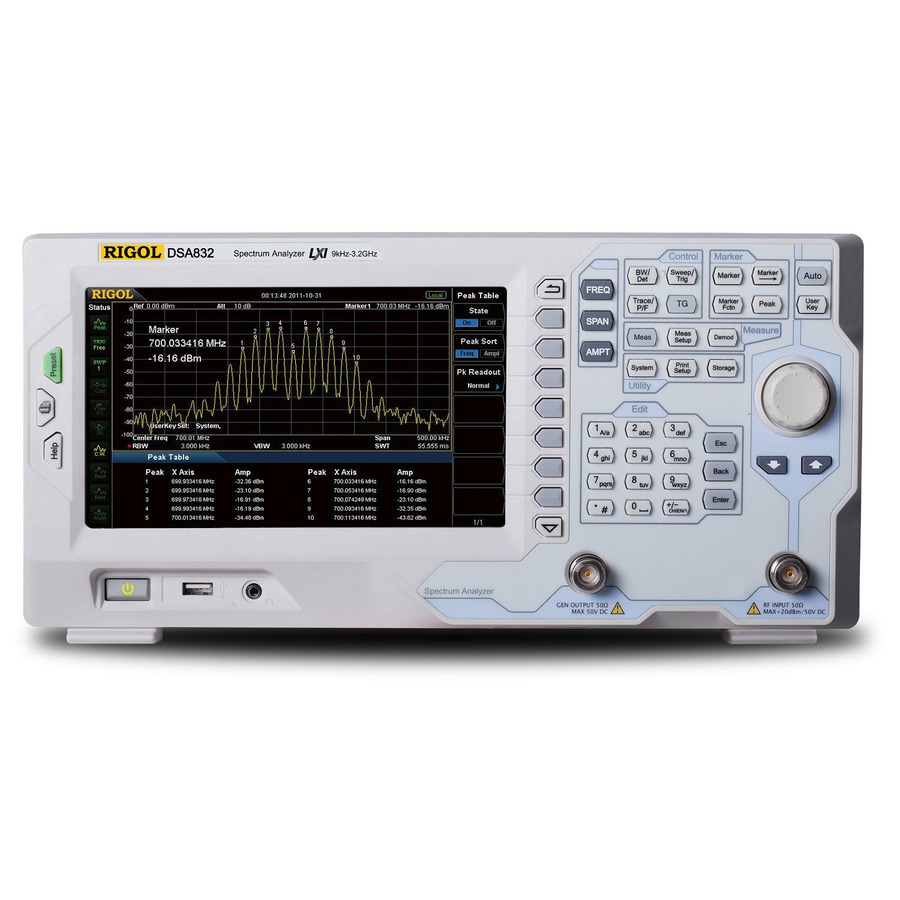

The RIGOL DSA832-TG is a benchtop RF spectrum analyzer that combines high performance with affordability. It offers a frequency range of 9 kHz to 3.2 GHz, a frequency accuracy of 0.5 ppm, and a wide range of features to meet the needs of engineers and technicians in various industries.

Features:

Frequency range: 9 kHz to 3.2 GHz
Frequency accuracy: 0.5 ppm
Resolution bandwidth: 1 Hz to 10 MHz
Video bandwidth: 1 Hz to 10 MHz
Dynamic range: >100 dB
Phase noise: <-100 dBc/Hz @ 10 kHz offset
Tracking generator: 9 kHz to 3.2 GHz, -10 dBm to +10 dBm
Built-in VSWR bridge
AM/FM/PM demodulation
Power measurements
Harmonic measurements
EMI measurements
Vector network analysis (optional)

Display: 10.1-inch capacitive touchscreen
Dimensions: 430 mm x 360 mm x 160 mm
Weight: 10 kg

What’s in the Box:

RIGOL DSA832-TG RF spectrum analyzer
Power cord
USB cable
Calibration certificate
User manual

High performance at an affordable price
Wide frequency range and high accuracy
Comprehensive feature set for various applications
Easy-to-use interface and intuitive operation
Compact and portable design

Value to the Customer:

The RIGOL DSA832-TG RF spectrum analyzer provides engineers and technicians with a powerful and versatile tool for RF analysis and troubleshooting. Its high performance, wide frequency range, and comprehensive feature set make it an ideal choice for a variety of applications, including:

RF design and development
Production testing
EMI compliance testing
Antenna measurements
* Wireless communication analysis
