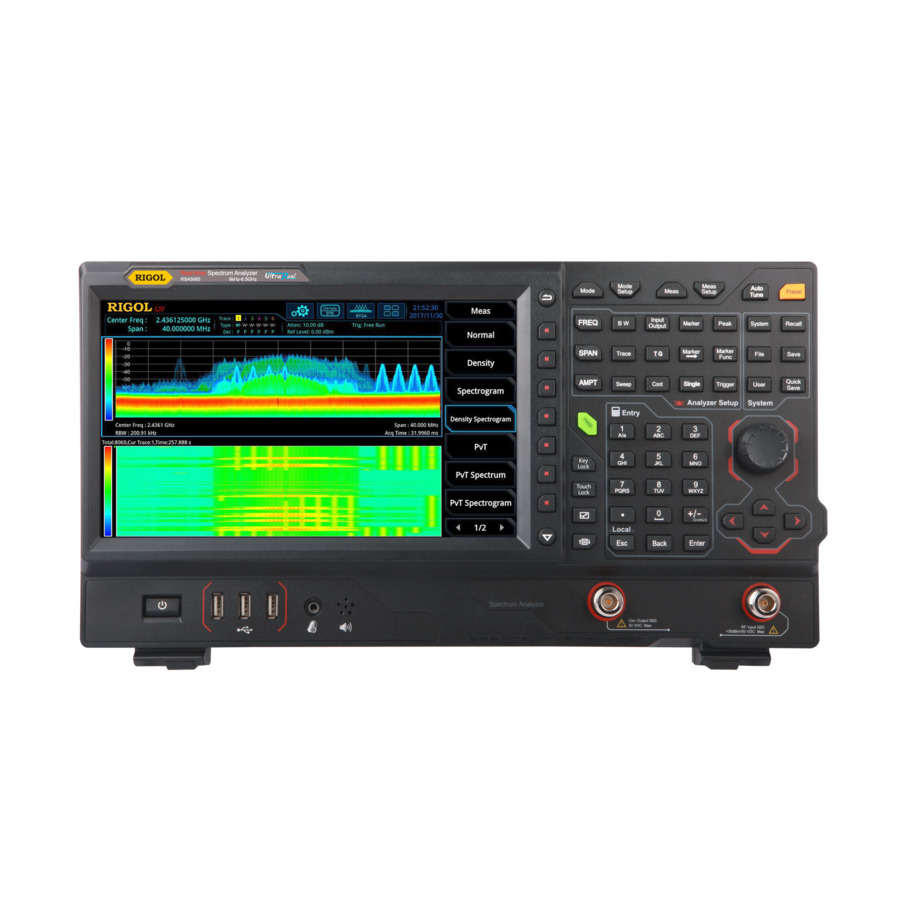

RIGOL RSA5065-TG: Uncover RF Insights with Real-Time Spectrum Analysis and Tracking Generator

Features and Specifications: RIGOL RSA5065-TG RF Real-Time Spectrum Analyzer, 6.5 GHz, Tracking Generator, RSA5000 Series

Product Overview:

The RIGOL RSA5065-TG is a high-performance RF real-time spectrum analyzer with a frequency range of 9 kHz to 6.5 GHz. It features a built-in tracking generator, making it ideal for testing and troubleshooting RF systems. The RSA5065-TG offers a wide range of features and capabilities, including:

Real-time bandwidth of 100 MHz
Maximum sample rate of 500 MS/s
Frequency range of 9 kHz to 6.5 GHz
Built-in tracking generator
Wide range of measurement functions
Intuitive user interface

Features and Specifications:

Frequency range: 9 kHz to 6.5 GHz
Real-time bandwidth: 100 MHz
Maximum sample rate: 500 MS/s
Dynamic range: >100 dB
Phase noise: <-100 dBc/Hz @ 10 kHz offset
Measurement functions: Amplitude, frequency, phase, power, modulation, and more
Built-in tracking generator: Frequency range of 9 kHz to 6.5 GHz, output power of -10 dBm to +10 dBm
Intuitive user interface: Touchscreen display, easy-to-use menus

What’s in the Box:

RIGOL RSA5065-TG RF Real-Time Spectrum Analyzer
Tracking generator cable
Power cord
USB cable
Quick start guide

High performance: The RSA5065-TG offers excellent performance, with a wide frequency range, high real-time bandwidth, and low phase noise.
Built-in tracking generator: The built-in tracking generator makes it easy to test and troubleshoot RF systems.
Wide range of measurement functions: The RSA5065-TG offers a wide range of measurement functions, making it a versatile tool for a variety of applications.
* Intuitive user interface: The intuitive user interface makes the RSA5065-TG easy to use, even for beginners.

Value:

The RIGOL RSA5065-TG is a valuable tool for engineers and technicians who need to test and troubleshoot RF systems. It offers high performance, a wide range of features, and an intuitive user interface, making it an excellent choice for a variety of applications.
