Tektronix CT1: Precision Current Probe for High-Frequency Measurements

Features and Specifications

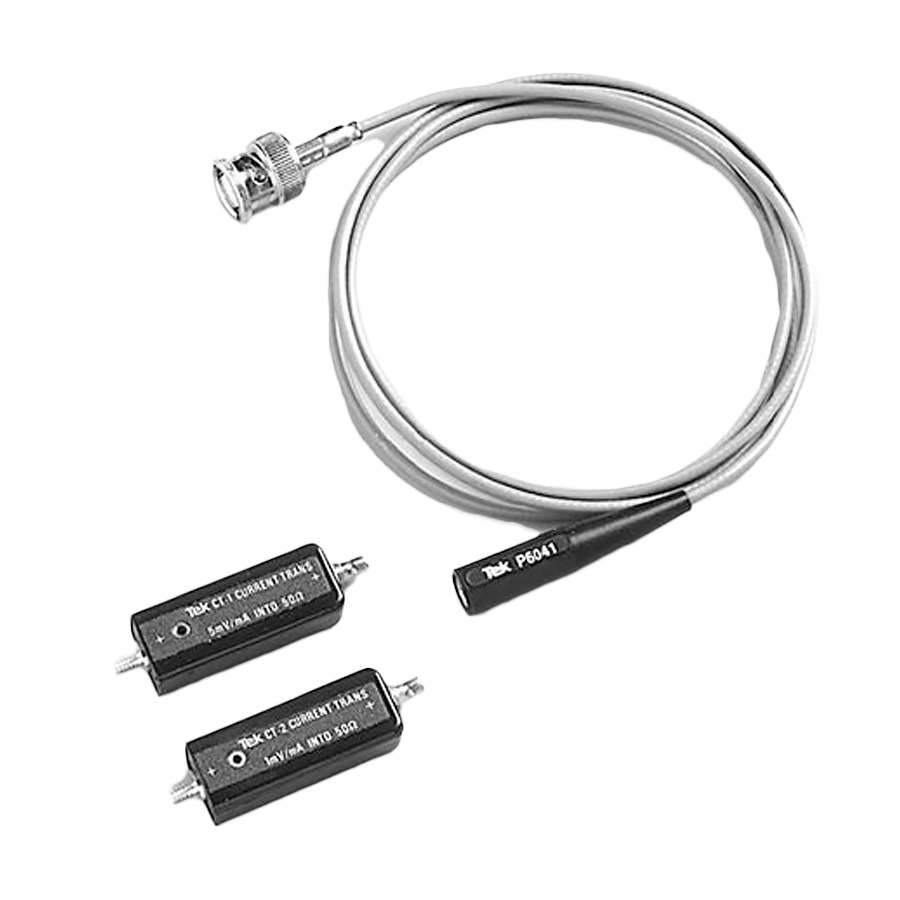

Tektronix CT1 High-Frequency Current Probe

Product Overview

The Tektronix CT1 is a high-frequency current probe designed for use with oscilloscopes. It offers a wide bandwidth of 1 GHz, making it ideal for measuring high-speed signals. The CT1 also has a high sensitivity of 200 mA/V, allowing it to measure small currents accurately.

Features

Bandwidth: 1 GHz
Sensitivity: 200 mA/V
Maximum input current: 12 A
Rise time: 350 ps
Input impedance: 1 MΩ
Output impedance: 50 Ω
BNC connector
Probe tip diameter: 1.78 mm

Specifications

Electrical
Bandwidth: 1 GHz
Sensitivity: 200 mA/V
Maximum input current: 12 A
Rise time: 350 ps
Input impedance: 1 MΩ
Output impedance: 50 Ω
Physical
Probe tip diameter: 1.78 mm
Probe length: 12 inches
Weight: 4 ounces

Tektronix CT1 High-Frequency Current Probe
BNC adapter
Carrying case

Benefits

High bandwidth for measuring high-speed signals
High sensitivity for measuring small currents accurately
Wide dynamic range for measuring a variety of signals
Easy to use with oscilloscopes
* Compact and portable for easy transport

Value

The Tektronix CT1 High-Frequency Current Probe is a valuable tool for engineers and technicians who need to measure high-speed signals. It offers a combination of high performance and affordability, making it an excellent choice for a wide range of applications.
