Tektronix P6021A: Precision Current Probe for Accurate Measurements

Features and Specifications

Tektronix P6021A Current Probe, AC, 10 mA, 10.6 A, 60 MHz, 150 V, CAT2, 250 A, 1.5m, P6000 Series

Product Overview

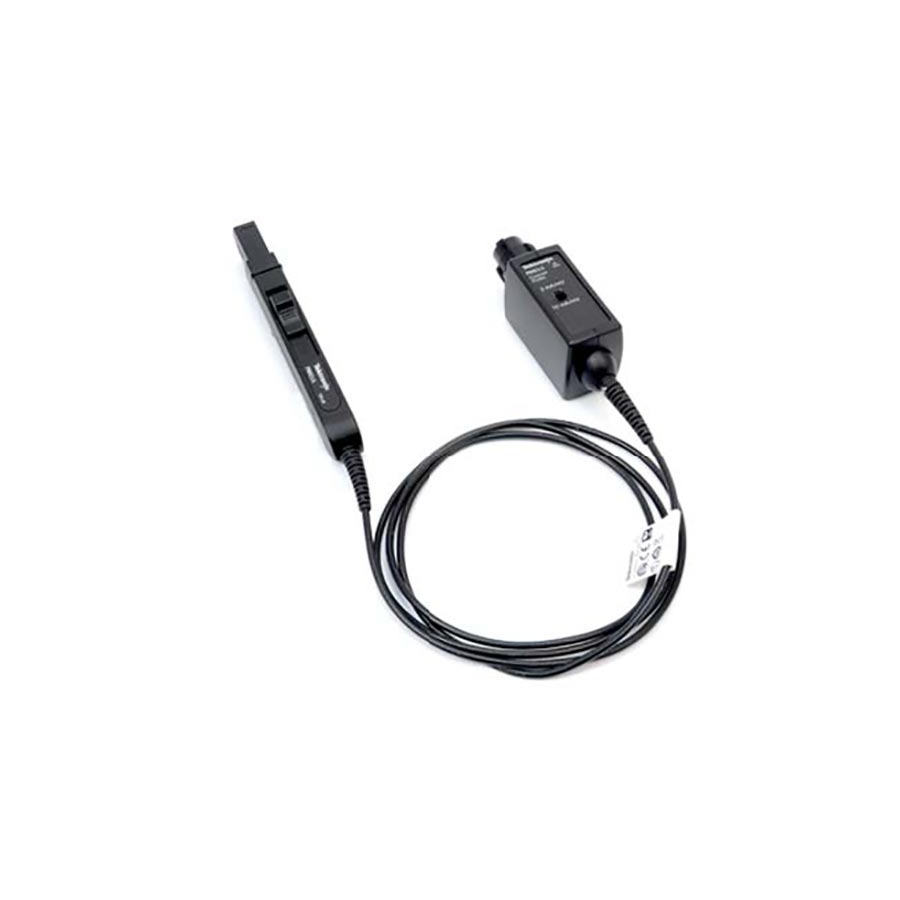

The Tektronix P6021A is a high-performance AC current probe designed for use with oscilloscopes and other test equipment. It offers a wide measurement range of 10 mA to 10.6 A, a bandwidth of 60 MHz, and a maximum voltage rating of 150 V CAT II. The P6021A is ideal for measuring currents in a variety of applications, including power electronics, automotive, and industrial.

Features

Wide measurement range: 10 mA to 10.6 A
High bandwidth: 60 MHz
Maximum voltage rating: 150 V CAT II
Split-core design for easy installation
BNC connector for compatibility with a wide range of oscilloscopes
Safety-rated for use in CAT II environments

Specifications

Measurement range: 10 mA to 10.6 A
Bandwidth: 60 MHz
Maximum voltage rating: 150 V CAT II
Accuracy: ±1% of reading ±0.1 A
Input impedance: 1 MΩ
Output impedance: 50 Ω
Dimensions: 150 mm x 50 mm x 25 mm
Weight: 250 g

What’s in the Box

Tektronix P6021A Current Probe
User manual

Benefits

The P6021A’s wide measurement range and high bandwidth make it ideal for a variety of applications.
The split-core design makes it easy to install the probe around conductors, even in tight spaces.
The BNC connector ensures compatibility with a wide range of oscilloscopes.
The safety-rated design makes the P6021A safe to use in CAT II environments.

Value

The Tektronix P6021A is a high-quality current probe that offers a wide range of features and benefits. It is an essential tool for any engineer or technician who needs to measure currents in a variety of applications.
