Tektronix TAP1500: 1.5 GHz Active Probe for Precision Measurements

Features and Specifications

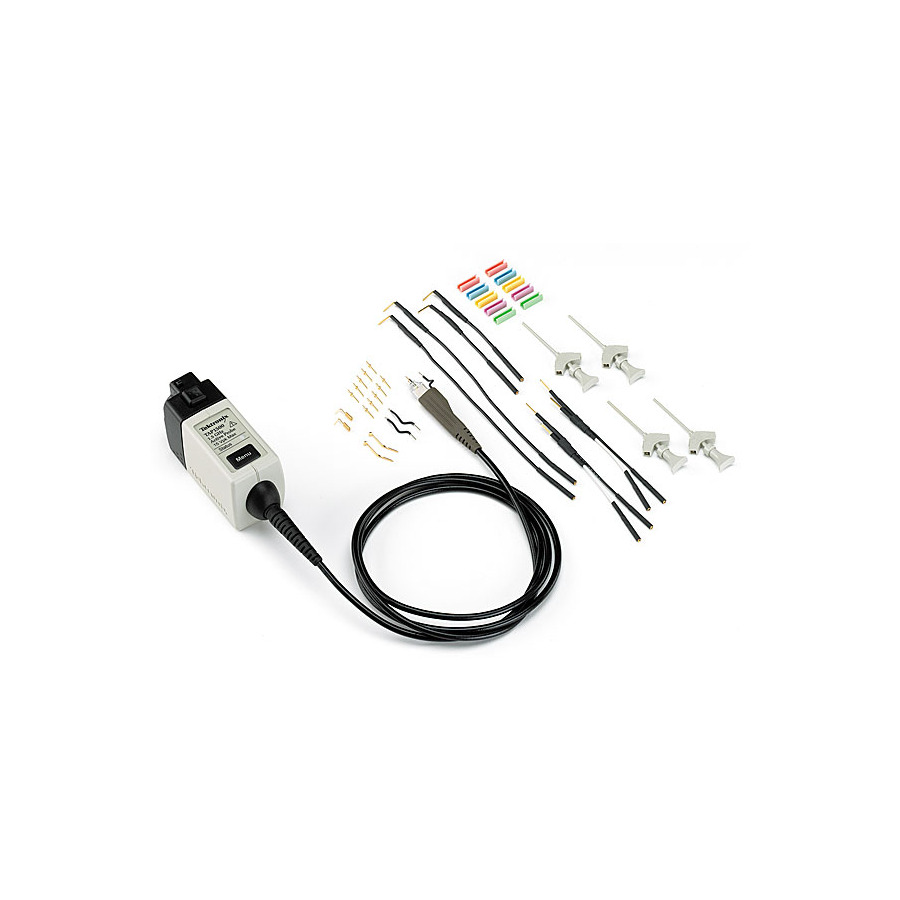

Tektronix TAP1500 Active Probe

Product Overview

The Tektronix TAP1500 Active Probe is a high-performance probe designed for use with oscilloscopes. It offers a wide bandwidth of 1.5 GHz, a high input impedance of 1 Mohm, and a low input capacitance of 1 pF. This makes it ideal for probing high-speed signals in a variety of applications, including digital design, power electronics, and telecommunications.

Features

Bandwidth: 1.5 GHz
Input impedance: 1 Mohm
Input capacitance: 1 pF
Voltage range: ±15 V
Rise time: <230 ps
Fall time: <230 ps
Overvoltage protection: ±40 V
ESD protection: ±1 kV
TekVPI interface
1.3m cable length

Benefits

High bandwidth and low input capacitance provide accurate measurements of high-speed signals.
High input impedance minimizes loading on the circuit under test.
Overvoltage and ESD protection safeguards the probe from damage.
TekVPI interface provides easy connection to Tektronix oscilloscopes.
Long cable length provides flexibility in positioning the probe.

Tektronix TAP1500 Active Probe
Ground lead
Calibration certificate
* User manual

Value to the Customer

The Tektronix TAP1500 Active Probe is a valuable tool for engineers and technicians who need to measure high-speed signals accurately. Its high performance and reliability make it an essential tool for a variety of applications.
