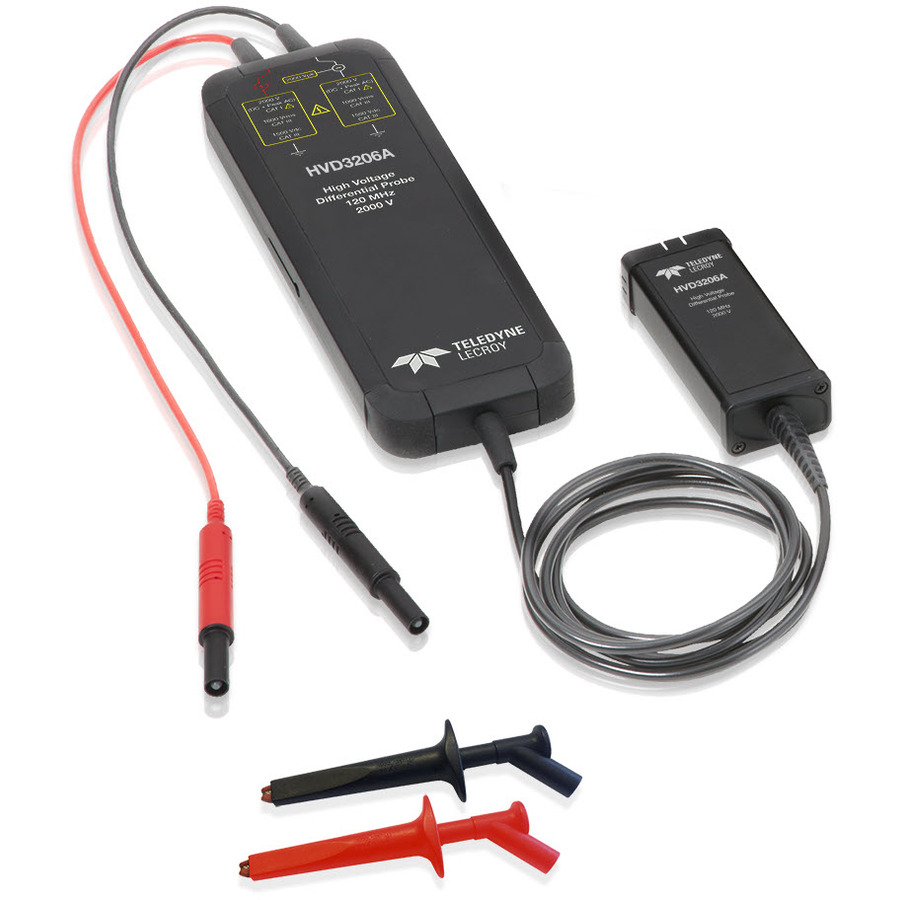

Teledyne LeCroy HVD3206A: 2 kV, 120 MHz Differential Probe with Auto Zero and 2m Cable

Features and Specifications: Teledyne LeCroy HVD3206A Differential Probe

Product Overview:

The Teledyne LeCroy HVD3206A is a high-voltage differential probe designed for accurate and reliable measurements in high-power electronics applications. With its 2 kV voltage rating and 120 MHz bandwidth, it provides exceptional performance for capturing fast transients and high-frequency signals.

Features:

High Voltage Rating: 2 kV differential, 4 kV common mode
Wide Bandwidth: 120 MHz
Auto Zero: Automatically compensates for offset errors
2m Cable: Provides ample reach for convenient measurements
HVD3000A Series: Compatible with Teledyne LeCroy oscilloscopes

Voltage Range: ±1 kV (differential), ±2 kV (common mode)
Bandwidth: DC to 120 MHz (-3 dB)
Input Impedance: 10 MΩ || 10 pF
Common Mode Rejection Ratio (CMRR): >80 dB at 50 Hz
Probe Attenuation: 100:1
Maximum Input Voltage: 2 kV (differential), 4 kV (common mode)
Cable Length: 2m

Benefits:

Accurate Measurements: High voltage rating and wide bandwidth ensure precise signal capture.
Convenience: Auto zero feature simplifies setup and eliminates offset errors.
Versatility: Compatible with a wide range of Teledyne LeCroy oscilloscopes.
Reliability: Rugged construction and high-quality components ensure long-term performance.

Value to the Customer:

The Teledyne LeCroy HVD3206A Differential Probe empowers engineers and technicians with the tools they need to troubleshoot and analyze high-power electronics systems effectively. Its high voltage rating, wide bandwidth, and ease of use make it an indispensable tool for applications such as:

Power electronics design and testing
Motor drive analysis
Inverter and converter measurements
Automotive electronics diagnostics
