Teledyne LeCroy T3CP150-12: Precision Current Probe for AC/DC Measurements

Features and Specifications: Teledyne LeCroy T3CP150-12 Current Probe, AC/DC, 5 mA, 150 A, 12 MHz, 20mm, 300 A, T3CP Series

Product Overview:

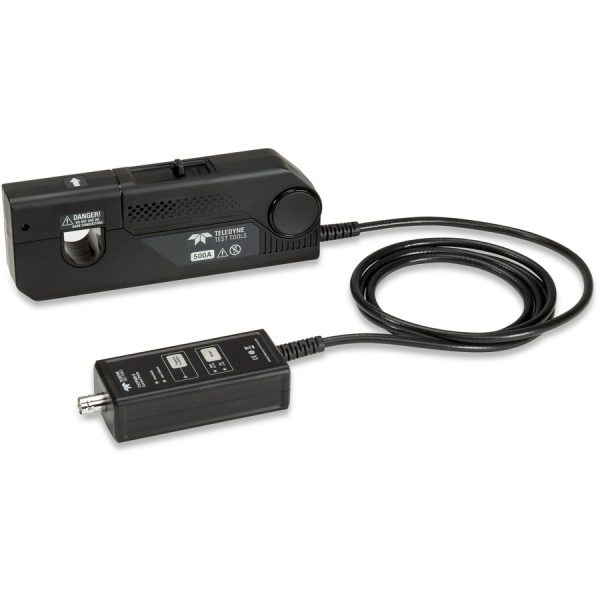

The Teledyne LeCroy T3CP150-12 Current Probe is a high-performance, AC/DC current probe designed for use with oscilloscopes and other test equipment. It offers a wide measurement range of 5 mA to 150 A, with a bandwidth of 12 MHz and a maximum peak current of 300 A. The probe features a compact, lightweight design with a 20mm diameter split-core sensor, making it easy to use in tight spaces.

Features:

AC/DC current measurement
Measurement range: 5 mA to 150 A
Bandwidth: 12 MHz
Maximum peak current: 300 A
Split-core sensor with 20mm diameter
Compact and lightweight design
BNC connector

Accuracy: ±1% of reading ±0.1 A
Sensitivity: 10 mV/A
Input impedance: 1 MΩ
Output impedance: 50 Ω
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 70°C
Dimensions: 150mm x 50mm x 30mm
Weight: 250g

T3CP150-12 Current Probe
User manual

High accuracy and wide measurement range
Compact and lightweight design for easy use
Split-core sensor for easy connection
* Ideal for use with oscilloscopes and other test equipment

Value to the Customer:

The Teledyne LeCroy T3CP150-12 Current Probe is a valuable tool for engineers and technicians who need to measure AC/DC current in a wide range of applications. Its high accuracy, wide measurement range, and compact design make it an ideal choice for use in both laboratory and field settings.
