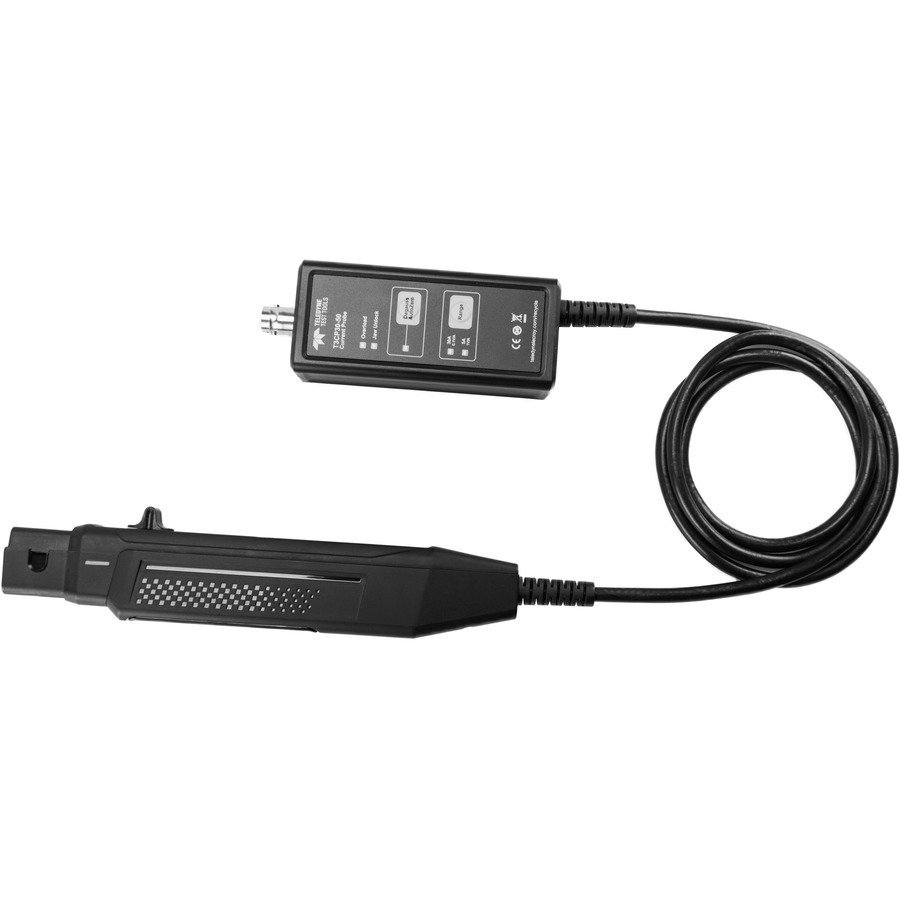

Teledyne LeCroy T3CP30-50: Precision Current Probe for AC/DC Measurements

Features and Specifications: Teledyne LeCroy T3CP30-50 Current Probe

Product Overview:

The Teledyne LeCroy T3CP30-50 Current Probe is a high-performance, AC/DC current probe designed for use with oscilloscopes and other test equipment. It offers accurate and reliable current measurements with a wide bandwidth and high sensitivity.

Features:

AC/DC current measurement
Bandwidth: 50 MHz
Sensitivity: 1 mA
Maximum current: 30 A (AC), 50 A (DC)
Jaw opening: 5 mm
BNC connector
Compact and lightweight design

Accuracy: ±1% of reading ±0.1 A
Input impedance: 1 MΩ
Output impedance: 50 Ω
Rise time: <7 ns
Fall time: <10 ns
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 70°C

What’s in the Box:

T3CP30-50 Current Probe
User manual

Benefits:

Accurate and reliable current measurements
Wide bandwidth for capturing fast transients
High sensitivity for measuring small currents
Compact and lightweight design for easy handling
* BNC connector for compatibility with a wide range of oscilloscopes

Value to the Customer:

The Teledyne LeCroy T3CP30-50 Current Probe is an essential tool for engineers and technicians who need to measure current accurately and reliably. Its wide bandwidth, high sensitivity, and compact design make it ideal for a variety of applications, including power electronics testing, motor control analysis, and automotive diagnostics.
