Teledyne LeCroy T3HVD7000-100: High-Voltage Differential Probe for Precision Measurements
Roll over image to zoom in
$1,929.00
Teledyne LeCroy T3HVD7000-100 High-Voltage Differential Probe: 100 MHz bandwidth, 7 kV peak differential voltage, 2.5 pF input capacitance, 40 MΩ input resistance, T3HVD Series
Condition: New
Features and Specifications

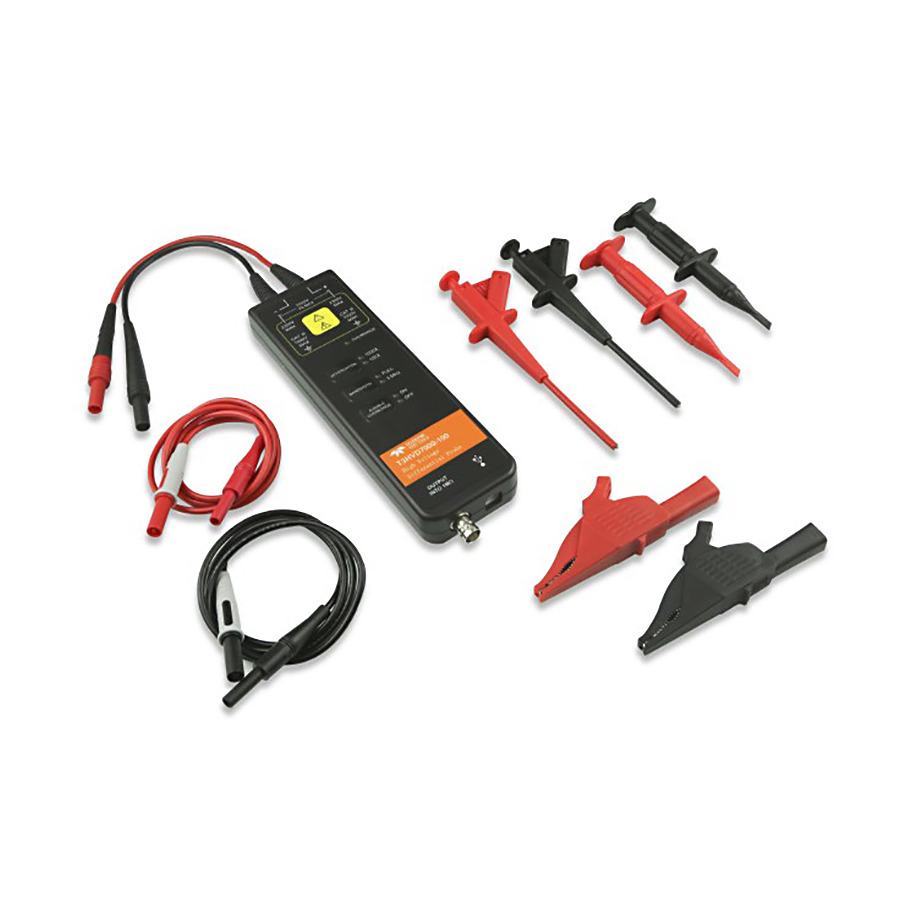

Teledyne LeCroy T3HVD7000-100 High-Voltage Differential Probe
Product Overview
The Teledyne LeCroy T3HVD7000-100 High-Voltage Differential Probe is a high-performance probe designed for measuring high-voltage signals in a variety of applications. It offers a wide bandwidth of 100 MHz, a high input impedance of 40 MΩ, and a low input capacitance of 2.5 pF. The probe is also protected against overloads up to 7 kV, making it ideal for use in harsh environments.
Features
Bandwidth: 100 MHz
Input impedance: 40 MΩ
Input capacitance: 2.5 pF
Overload protection: 7 kV
Differential and single-ended measurements
Ground reference compensation
Auto-ranging
Compact and lightweight
Specifications
Bandwidth: 100 MHz (-3 dB)
Input impedance: 40 MΩ ±2%
Input capacitance: 2.5 pF ±0.5 pF
Overload protection: 7 kV (DC + peak AC)
Common mode rejection ratio: >80 dB at 50 MHz
Differential gain accuracy: ±1%
Differential phase accuracy: ±1°
Maximum input voltage: 7 kV (DC + peak AC)
Operating temperature: 0°C to 50°C
Storage temperature: -20°C to 70°C
Dimensions: 150 mm x 50 mm x 25 mm
Weight: 250 g
What’s in the Box
T3HVD7000-100 High-Voltage Differential Probe
Ground lead
Probe tip
Carrying case
Benefits
High bandwidth and low input capacitance for accurate measurements of high-speed signals
High input impedance for minimal loading of the circuit under test
Overload protection for safe operation in harsh environments
Differential and single-ended measurements for versatility
Ground reference compensation for accurate measurements in noisy environments
Auto-ranging for ease of use
* Compact and lightweight for portability
Value
The Teledyne LeCroy T3HVD7000-100 High-Voltage Differential Probe is a valuable tool for engineers and technicians who need to measure high-voltage signals accurately and safely. Its high performance, versatility, and ease of use make it an ideal choice for a variety of applications.
