Teledyne LeCroy T3LVD20-200: Precision Low-Voltage Differential Probe for Advanced Signal Analysis

Features and Specifications

Teledyne LeCroy T3LVD20-200 Low-Voltage Active Differential Probe

Product Overview

The Teledyne LeCroy T3LVD20-200 is a high-performance, low-voltage active differential probe designed for precise measurements in low-voltage applications. With its wide bandwidth of 200 MHz, high input impedance of 1 MΩ, and low input capacitance of 3.5 pF, the T3LVD20-200 provides accurate and reliable signal acquisition.

Features

Bandwidth: 200 MHz
Input Impedance: 1 MΩ
Input Capacitance: 3.5 pF
Maximum Input Voltage: ±20 V
Common Mode Rejection Ratio (CMRR): >80 dB
Differential Gain Accuracy: ±1%
Offset Adjustment Range: ±100 mV
Auto-Zero Function
LED Power Indicator

Probe Length: 1.5 m
Probe Tip Diameter: 0.5 mm
Probe Tip Spacing: 1.0 mm
Probe Weight: 100 g
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C

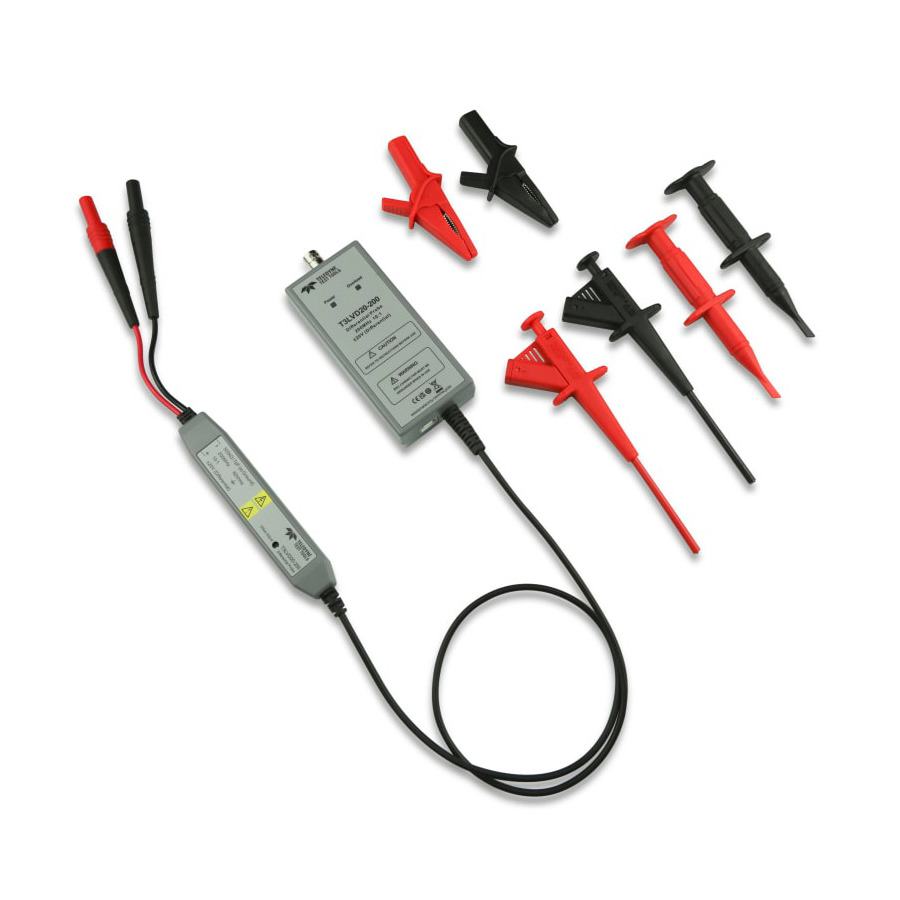

T3LVD20-200 Active Differential Probe
Ground Lead
Probe Tip Accessories
User Manual

Accurate and Reliable Measurements: The T3LVD20-200’s high input impedance and low input capacitance minimize loading effects on the circuit under test, ensuring accurate signal acquisition.
Wide Bandwidth: The 200 MHz bandwidth allows for the capture of high-frequency signals, making it suitable for a wide range of applications.
High CMRR: The high CMRR effectively rejects common mode noise, reducing measurement errors.
Auto-Zero Function: The auto-zero function automatically compensates for probe offsets, ensuring consistent and reliable measurements.
Compact and Portable: The compact design and lightweight construction make the T3LVD20-200 easy to use and transport.

Value to the Customer

The Teledyne LeCroy T3LVD20-200 Low-Voltage Active Differential Probe is an essential tool for engineers and technicians working with low-voltage circuits. Its high performance, accuracy, and ease of use make it an invaluable asset for troubleshooting, debugging, and design verification.
